Description

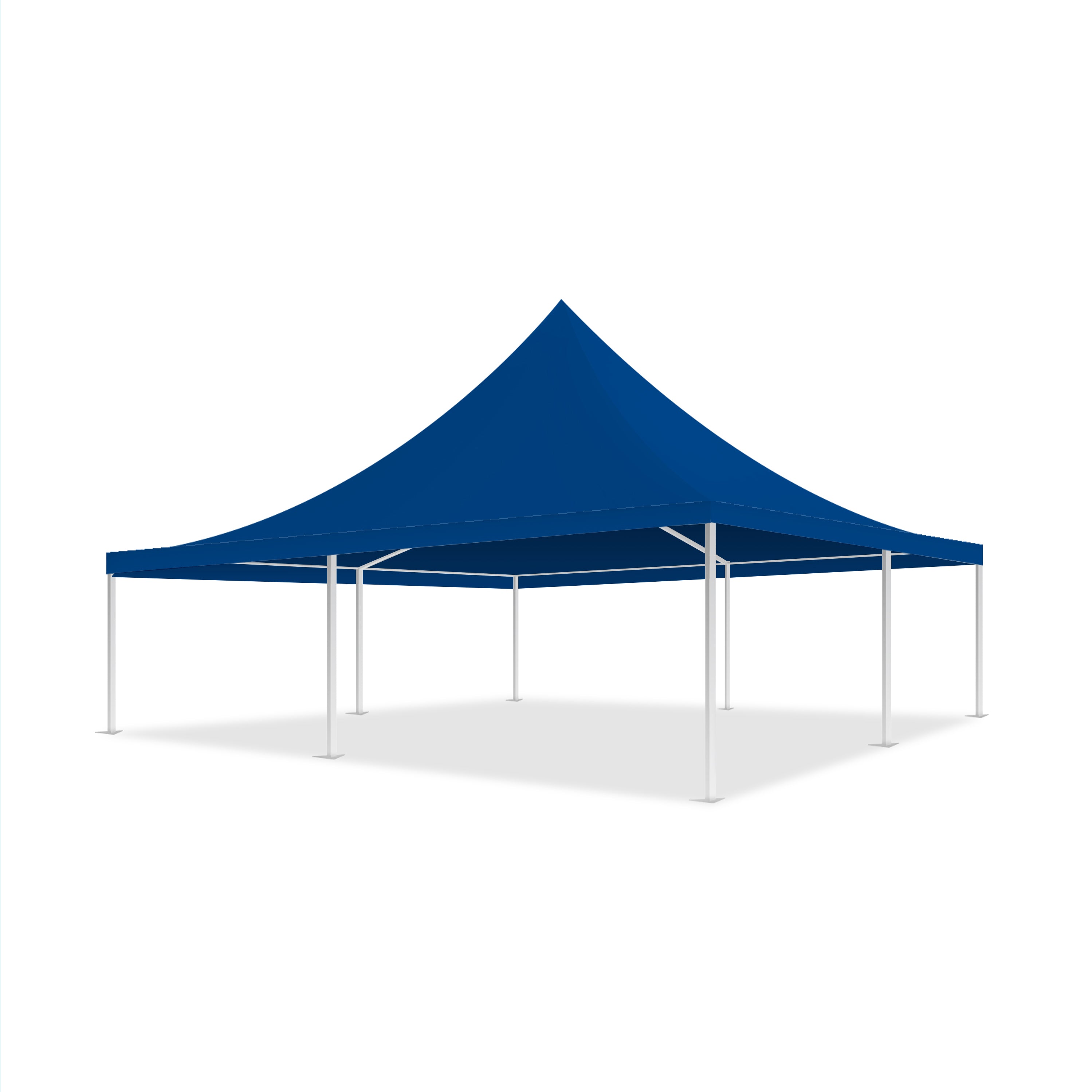

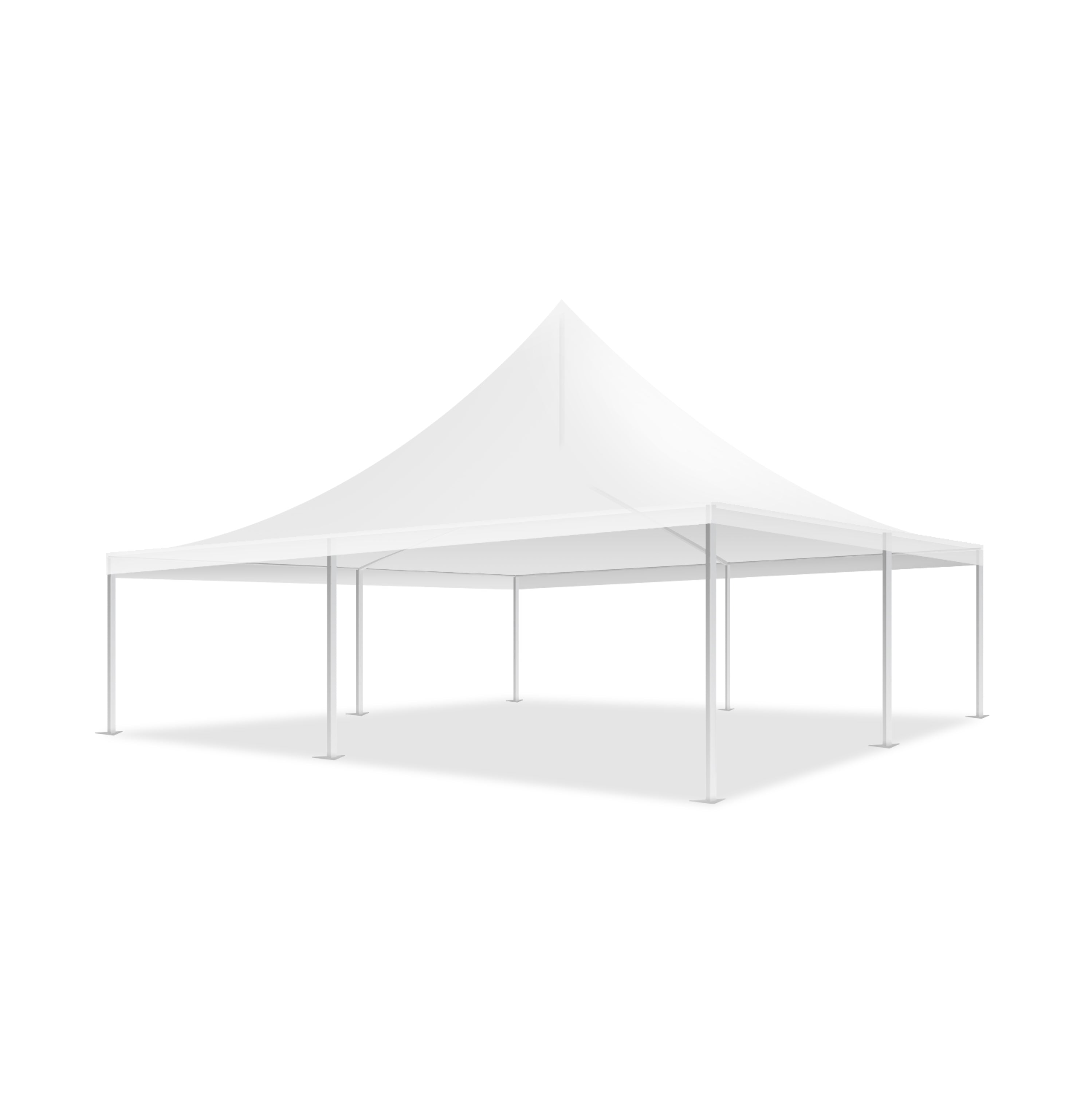

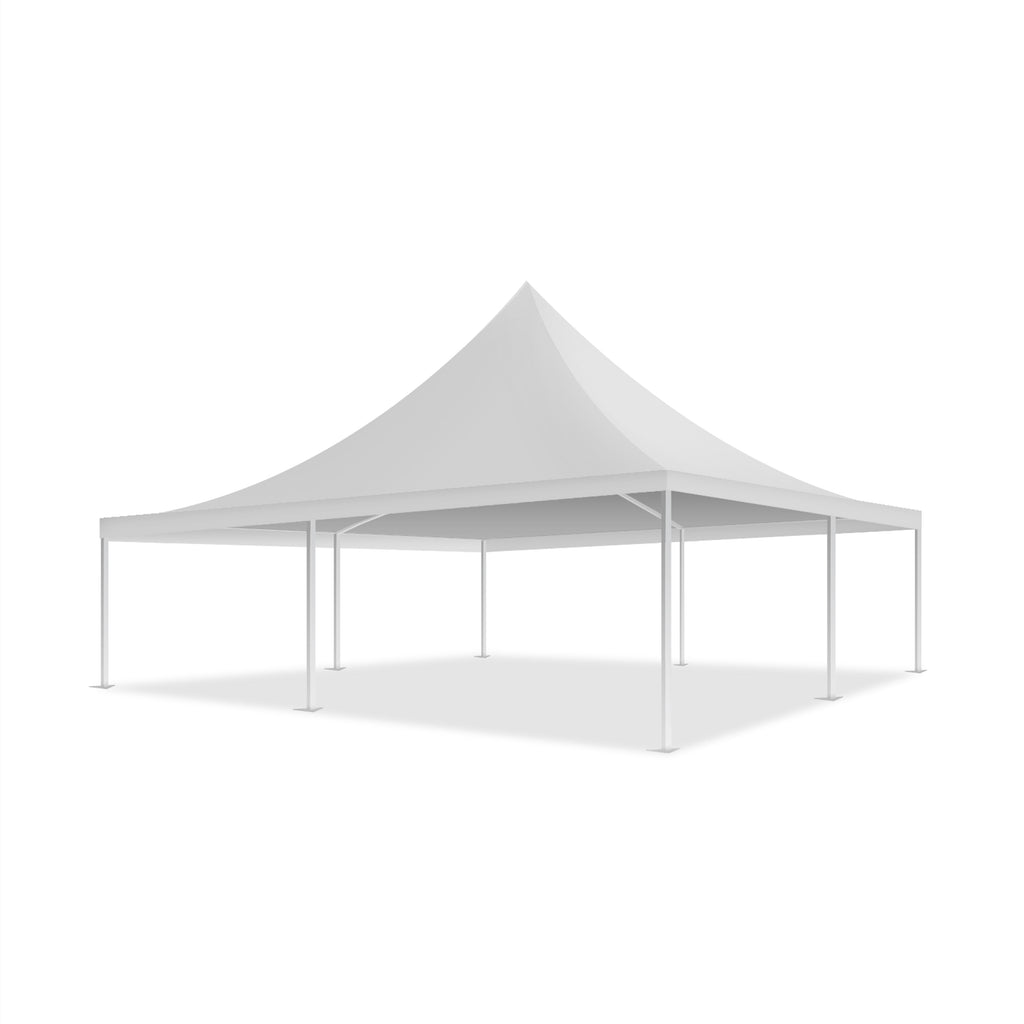

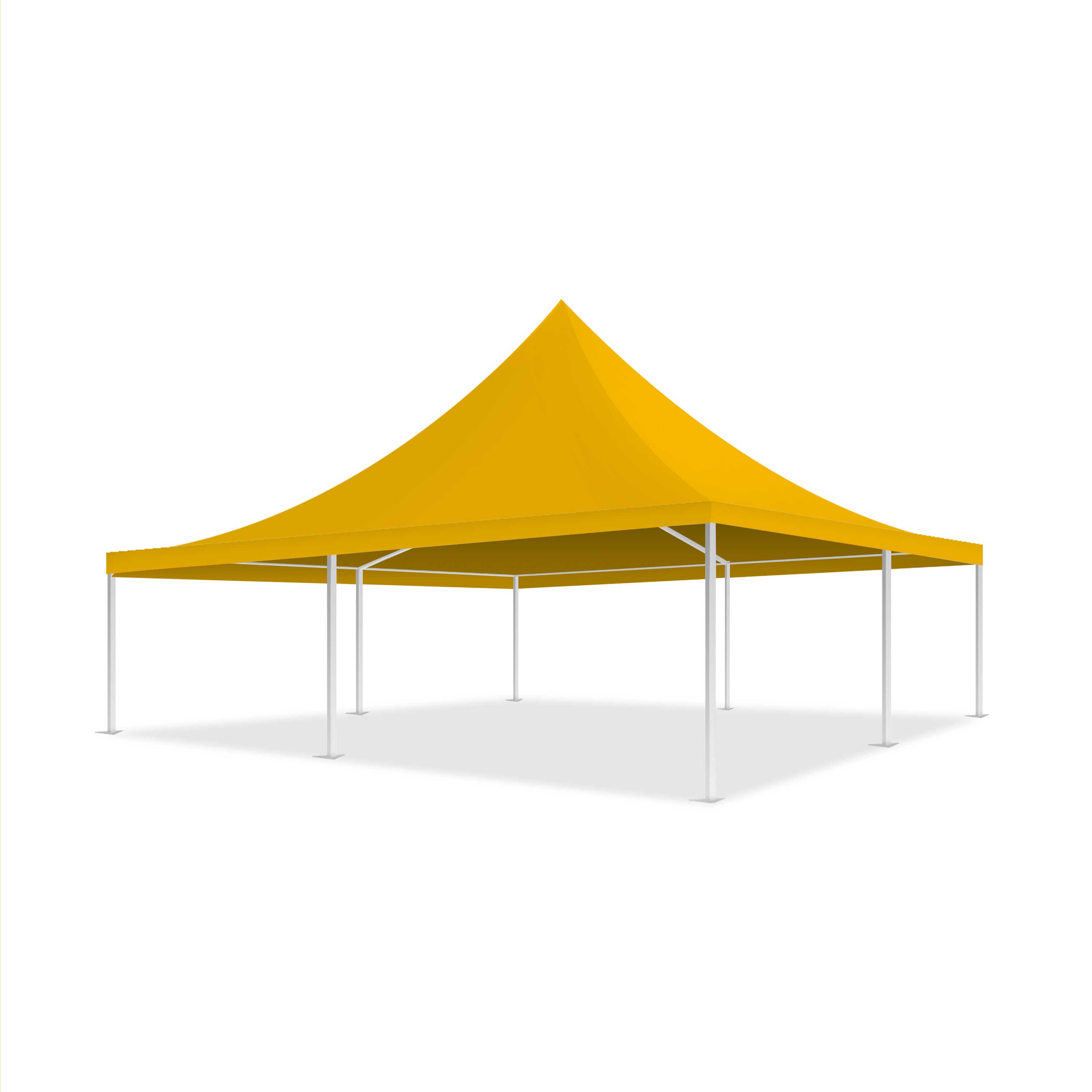

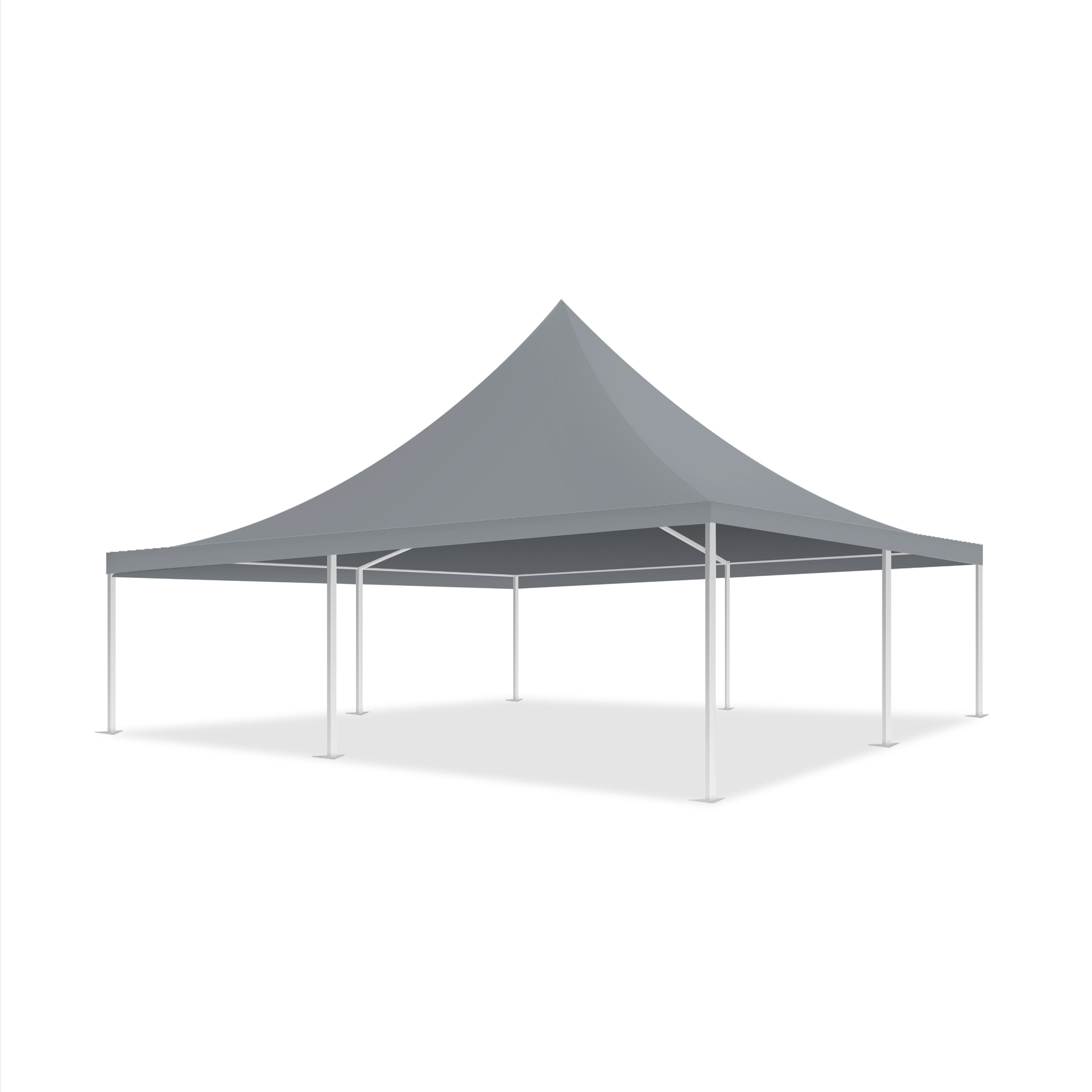

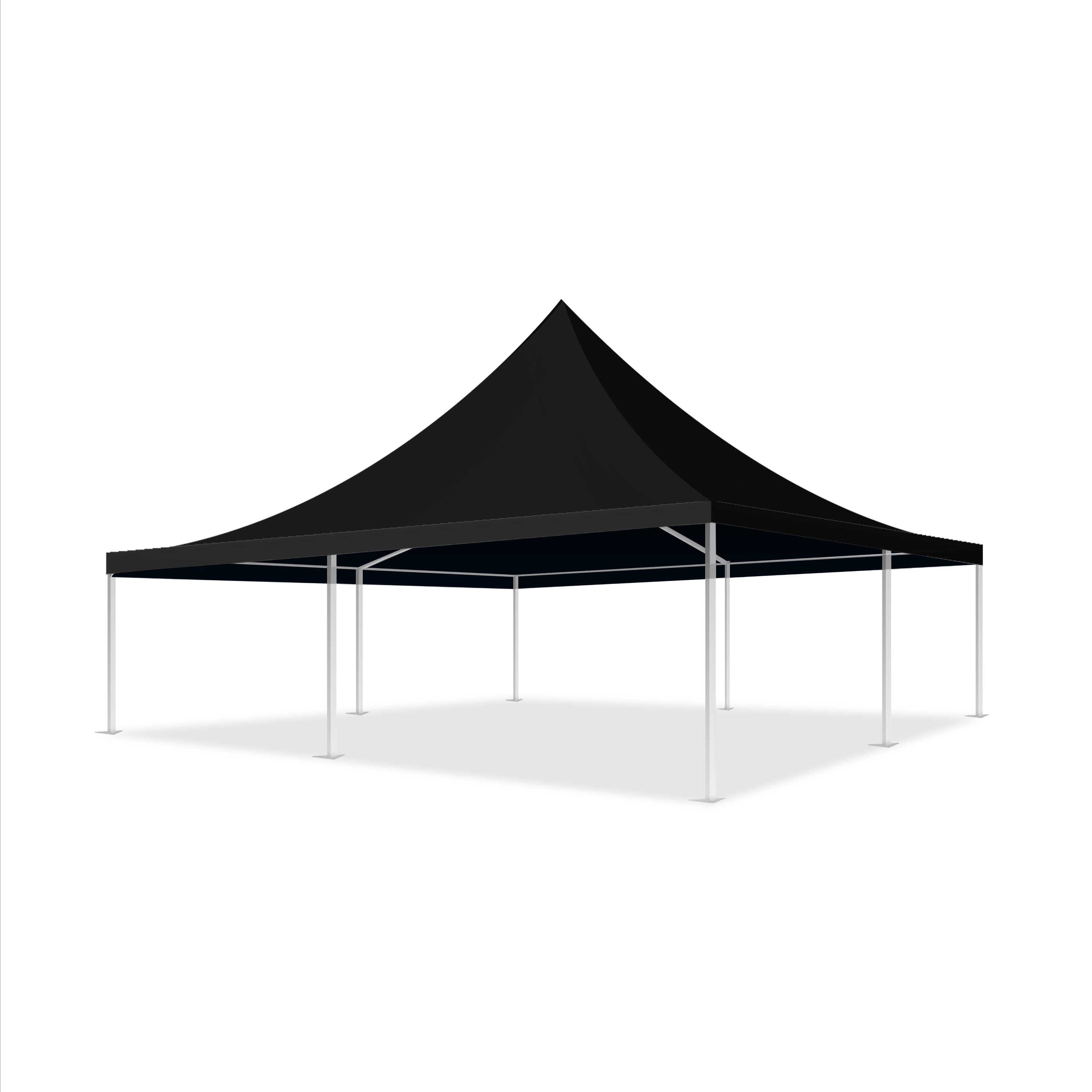

Pinnacle 8m x 8m

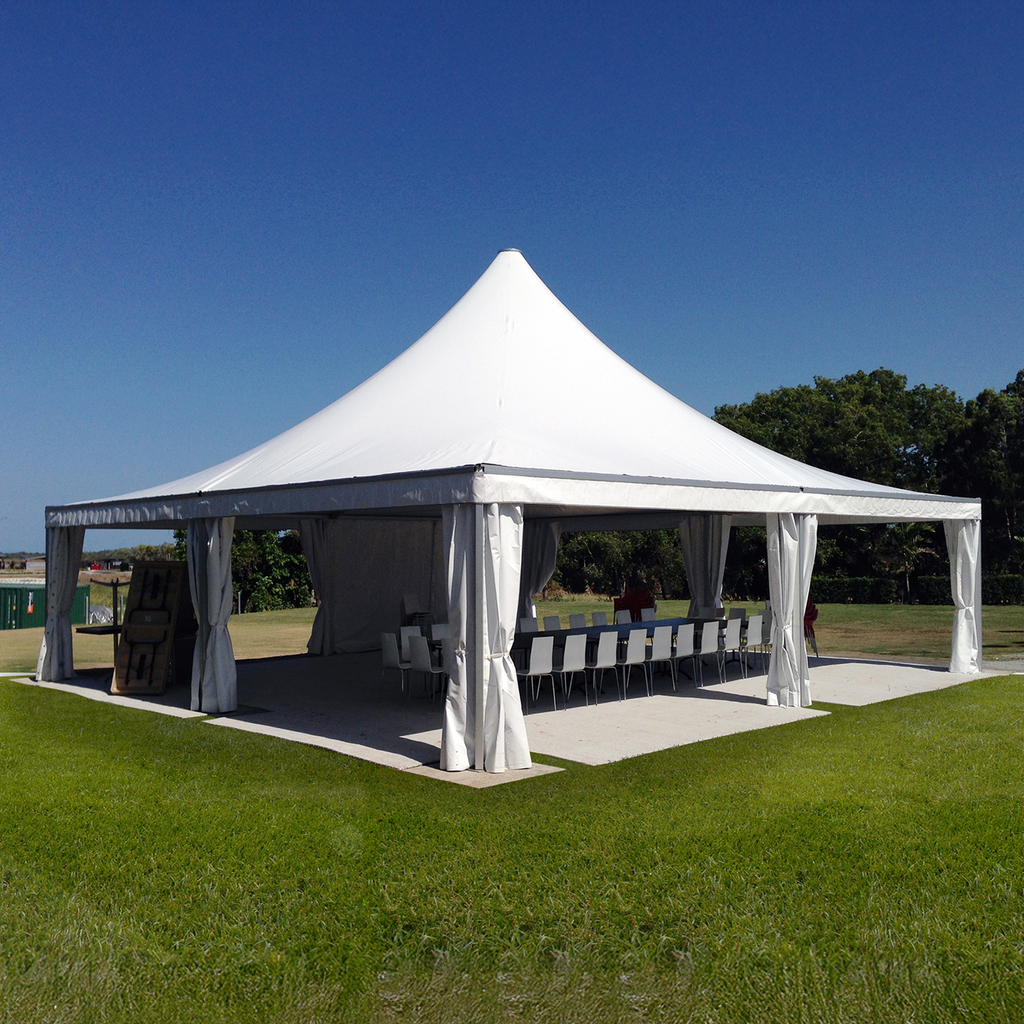

Upgrade your outdoor area with the 8m x 8m Pinnacle Semi-Permanent Tent, designed for strength, durability, and modern style. This professional-grade shelter features a robust aluminium structure and premium roofing, making it perfect for long-term installations in hospitality venues, event spaces, and commercial environments. Engineered to provide dependable weather protection, this versatile structure offers a reliable and stylish solution for permanent outdoor coverage.
Oversize product. Forklift or HIAB required for delivery.
Package Includes: Frame, roof, steel pins & steel pin pullers.
Features
• 122mm aluminium frame profile
• Iconic pagoda-style design

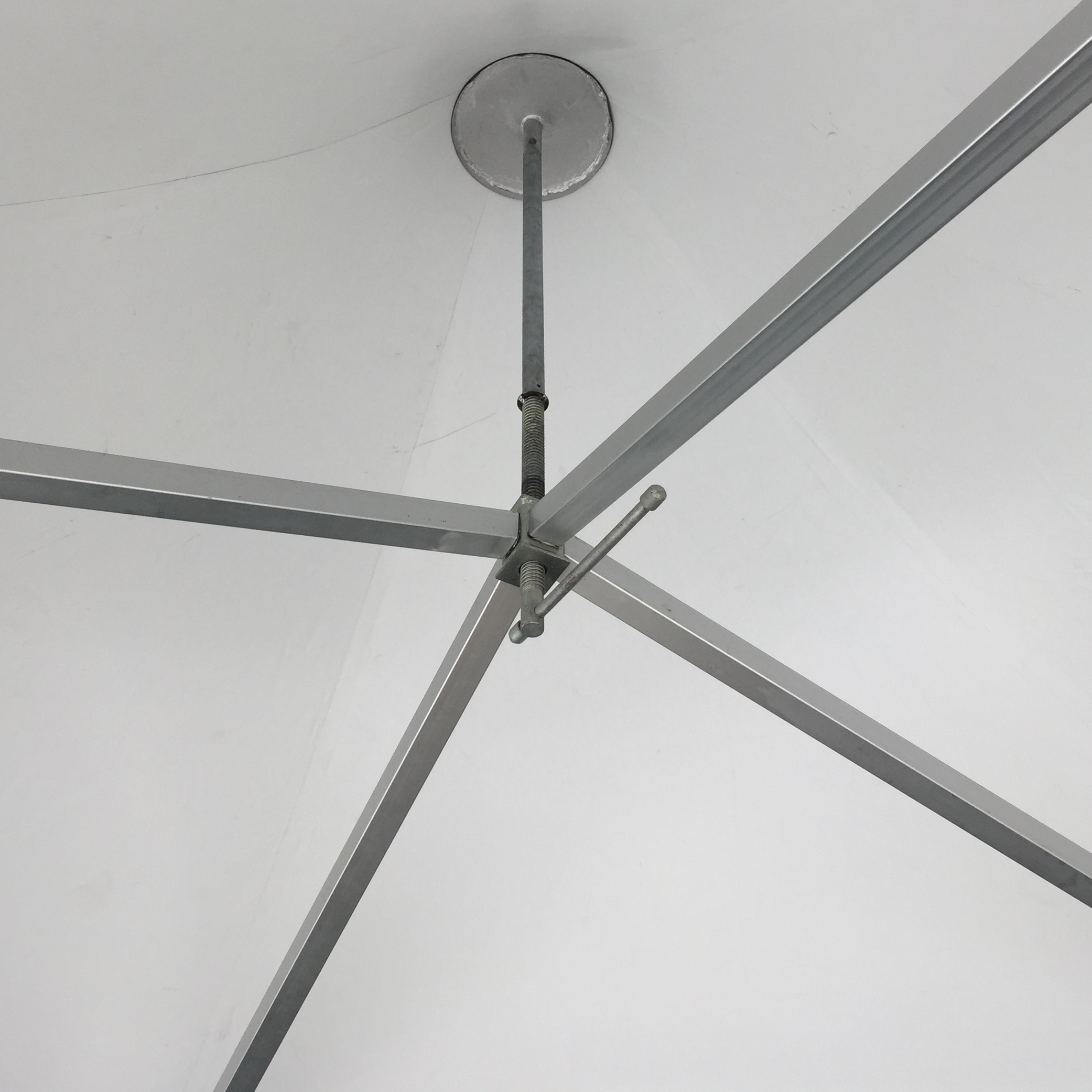

• Threaded rod tensioner
Specification Sheet Download > Instruction > 8m Engineer Cert >
| Specifications | 8m x 8m |
| Eave Height | 2.6m |
| Ridge Height | 6.4m |
| Clearance | 2m |
| Pitch Height | 2.2m |
| Frame Profile | 122 x 68 x 5.5mm |
| Max Allowed Windspeed | 80km/hr | 0.3kn/m2 |

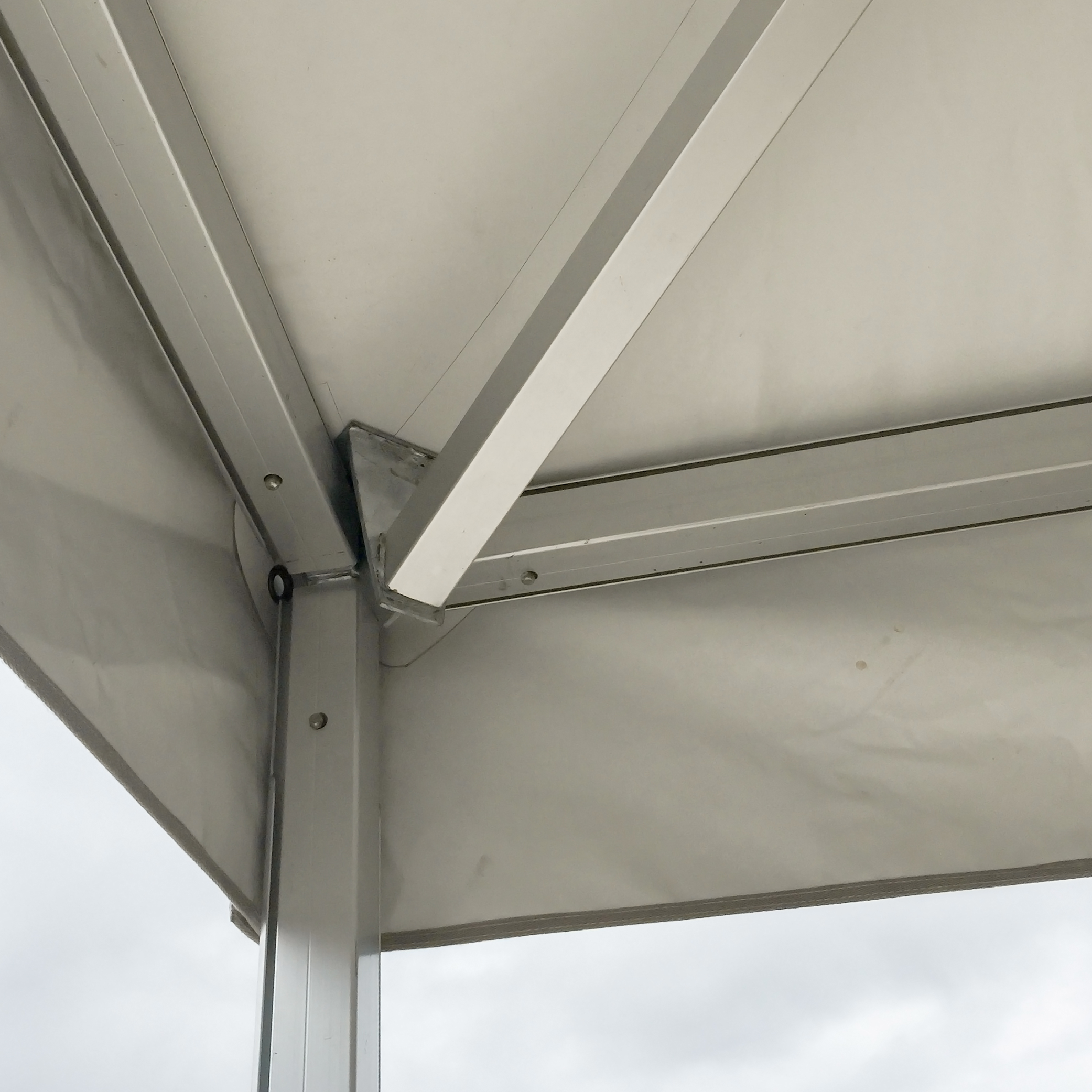

| Eave Connection | Hot-dip galvanized steel insert |
| Framework Material | Hard pressed extruded aluminium 6061/T6 (13Hw) |
| Frame Weight | 492kg |
| Roof Weight | 30.5kg |
| Roof Fabric | 950gsm clear PVC 850gsm white PVC 750gsm coloured PVC 650gsm white PVC walls |
| Frame Warranty | 10 years |
| Roof Warranty | 2 years clear PVC / 5 years white & coloured PVC |
