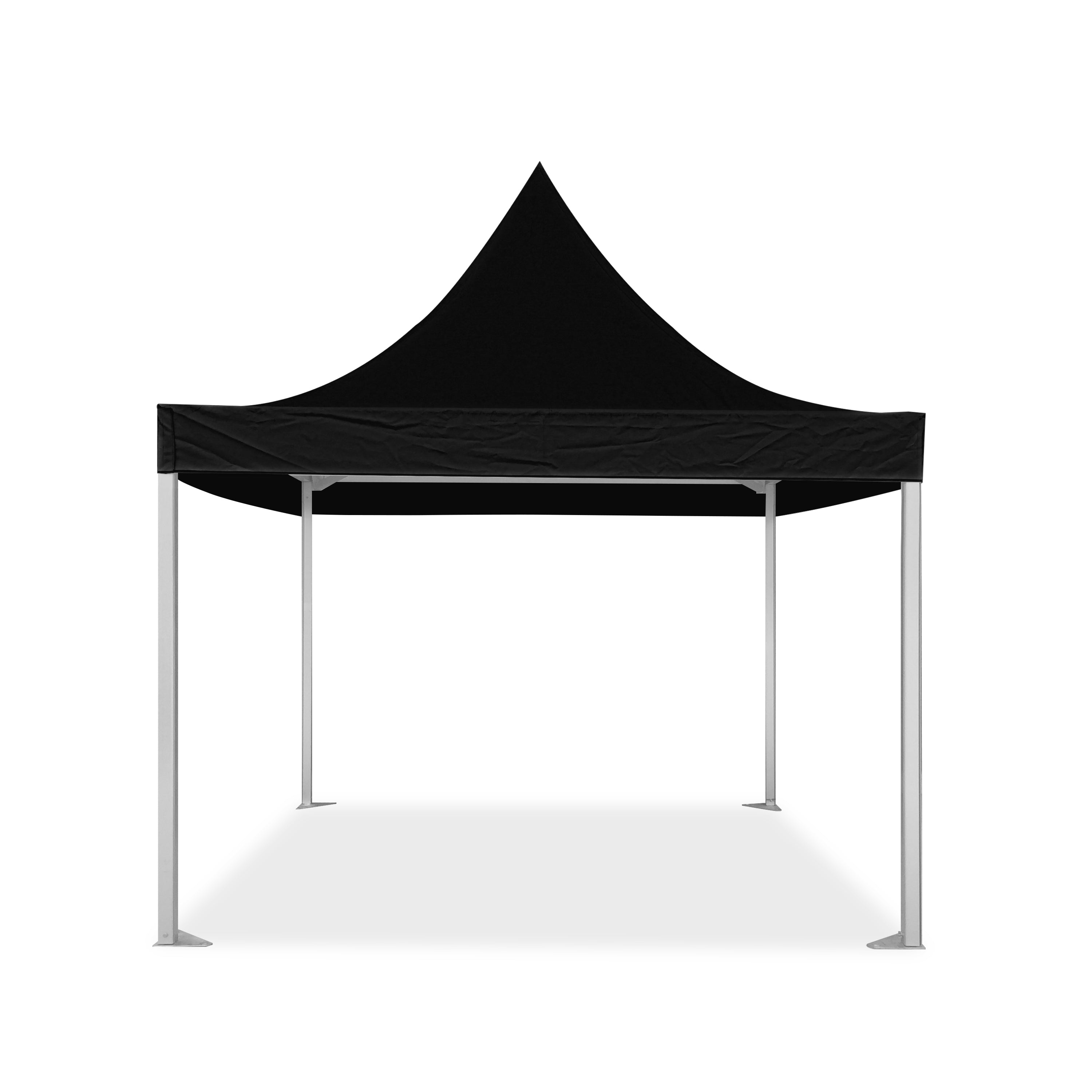

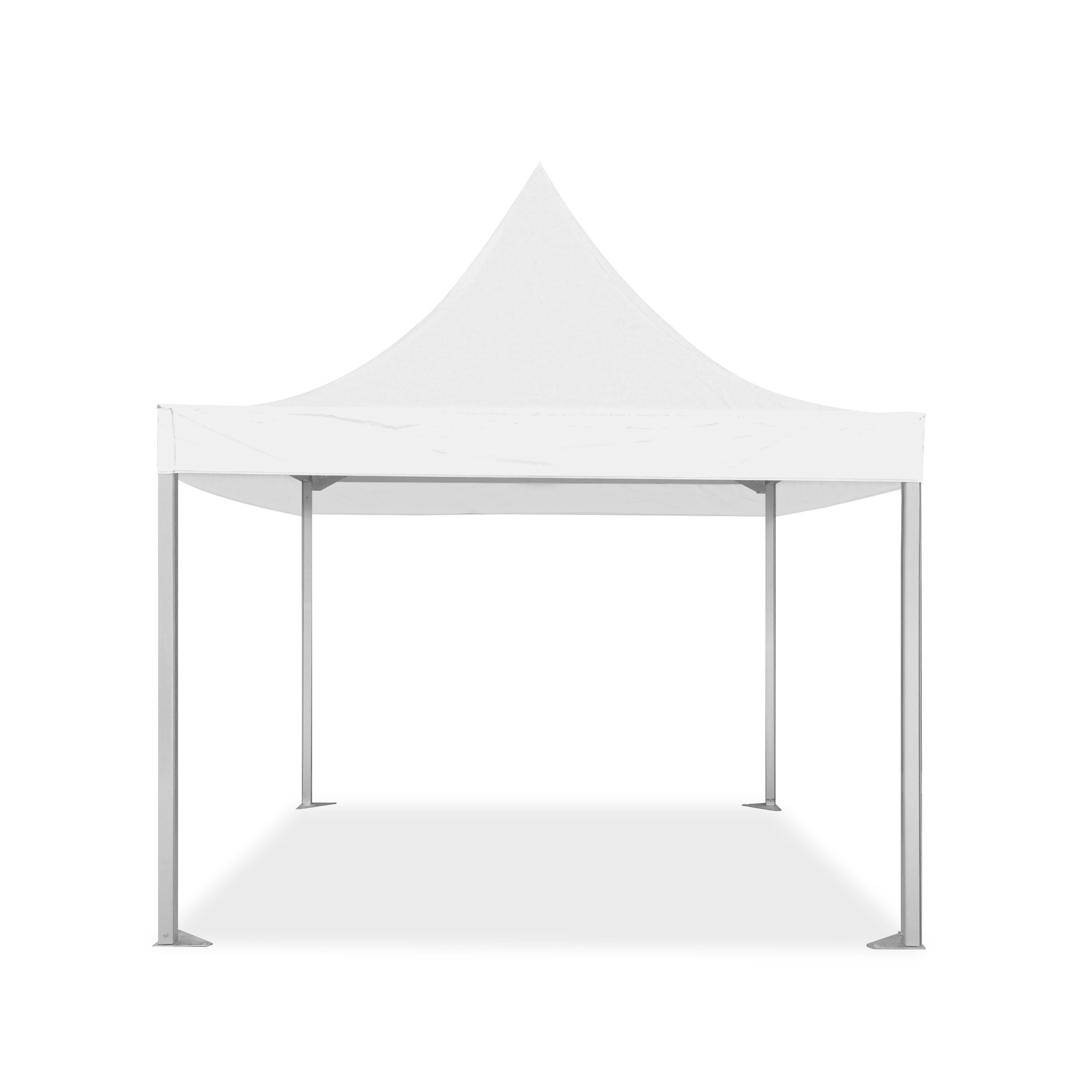

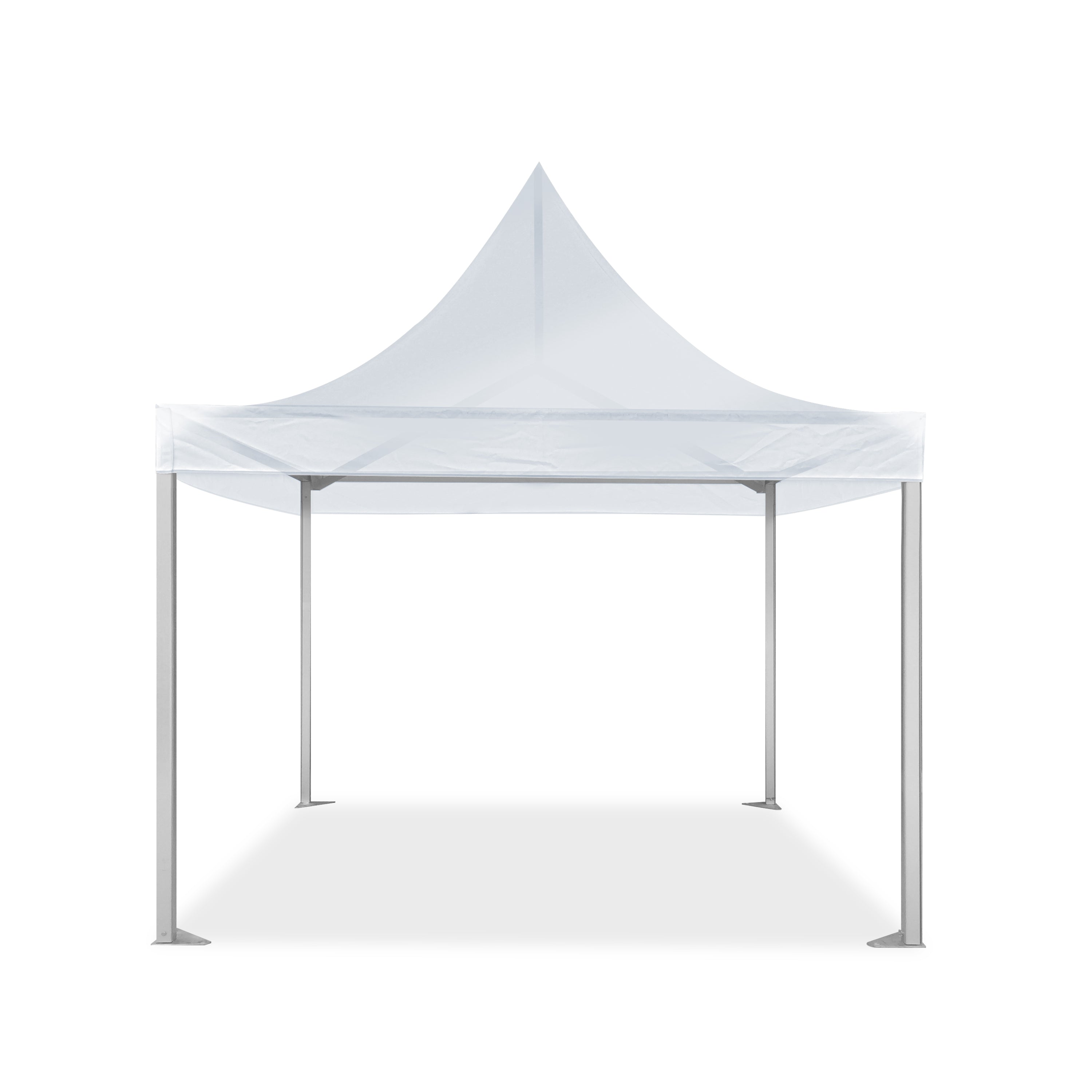

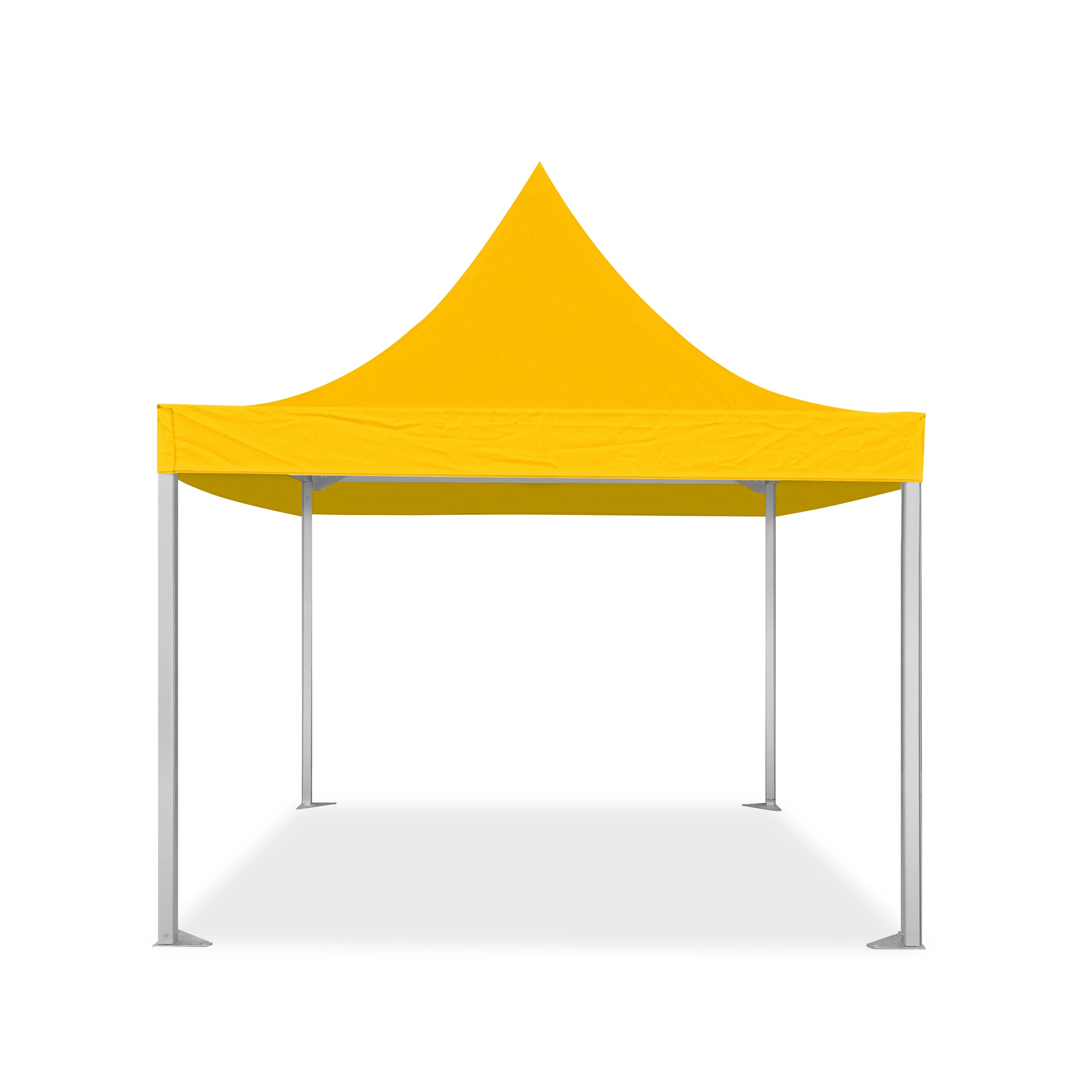

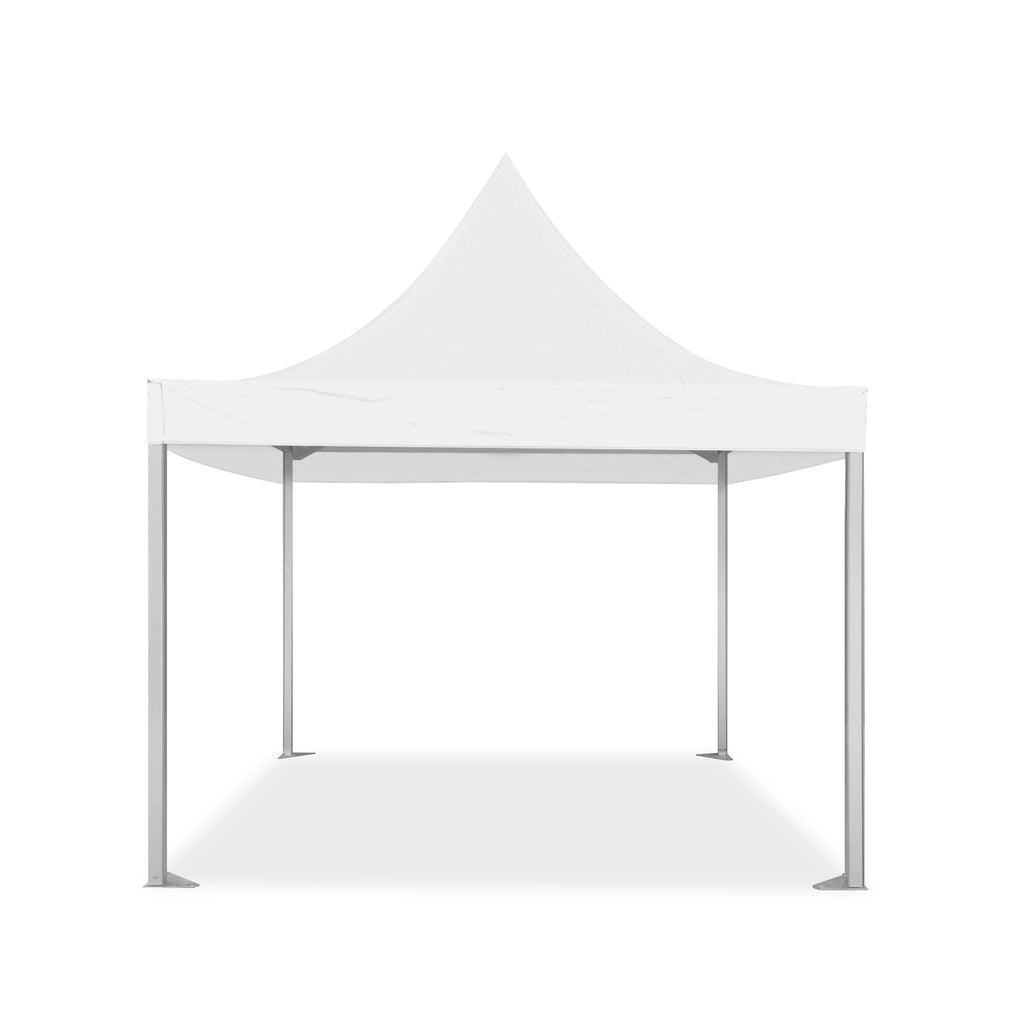

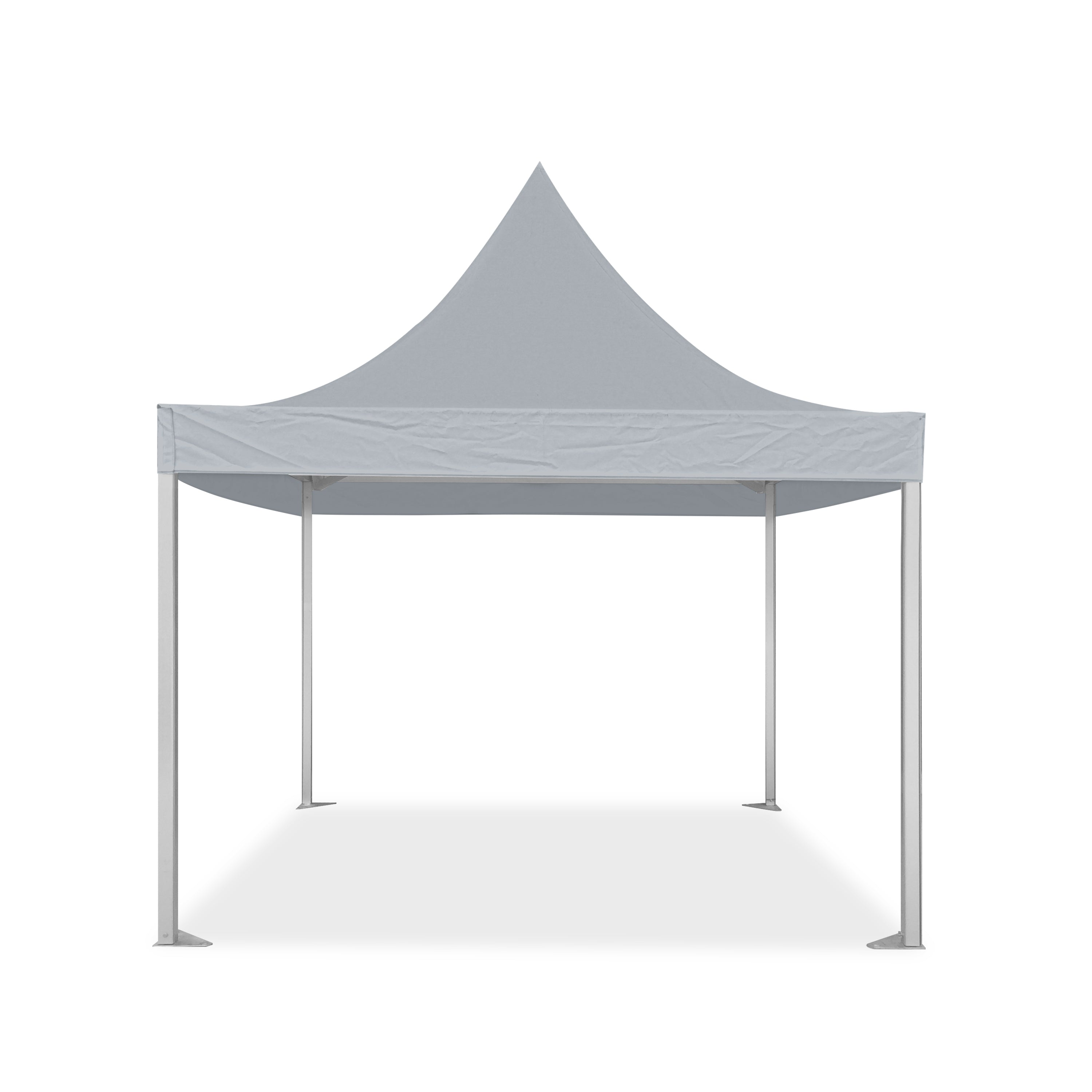

Pinnacle 4m x 4m

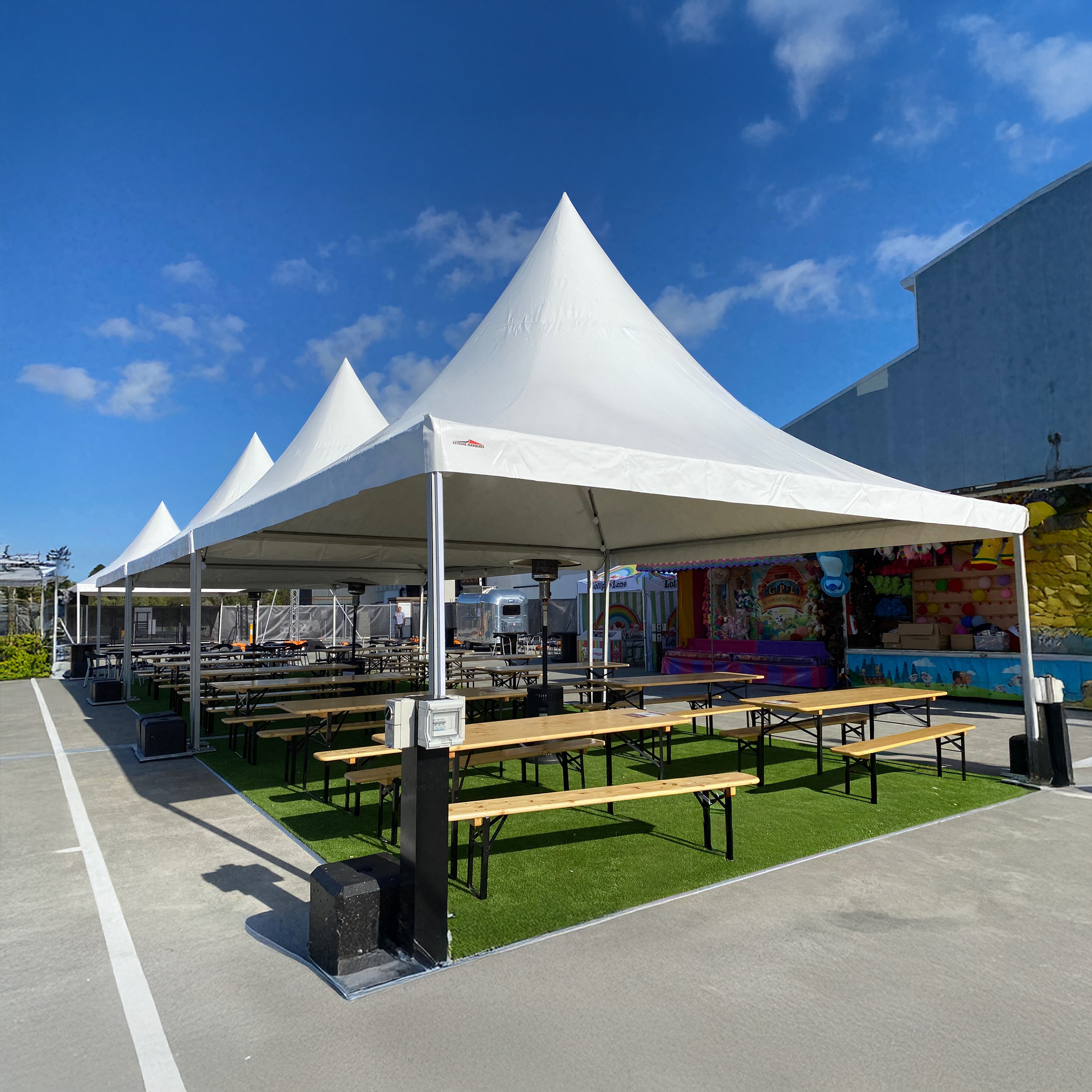

The 4m x 4m Pinnacle Semi-Permanent Tent is a premium outdoor shelter designed for long-term commercial use. Built with a durable aluminium structure and high-performance roofing fabric, it provides reliable protection from wind, rain, and sun while maintaining a modern architectural look. Ideal for hospitality venues, outdoor dining areas, and event locations that require strong, stylish coverage all year round. This structure combines durability, stability, and professional presentation.
Oversize product. Forklift or HIAB required for delivery.
Package Includes: Frame, roof, steel pins & steel pin pullers.
Features
• 63mm aluminium frame profile
• Iconic pagoda-style design

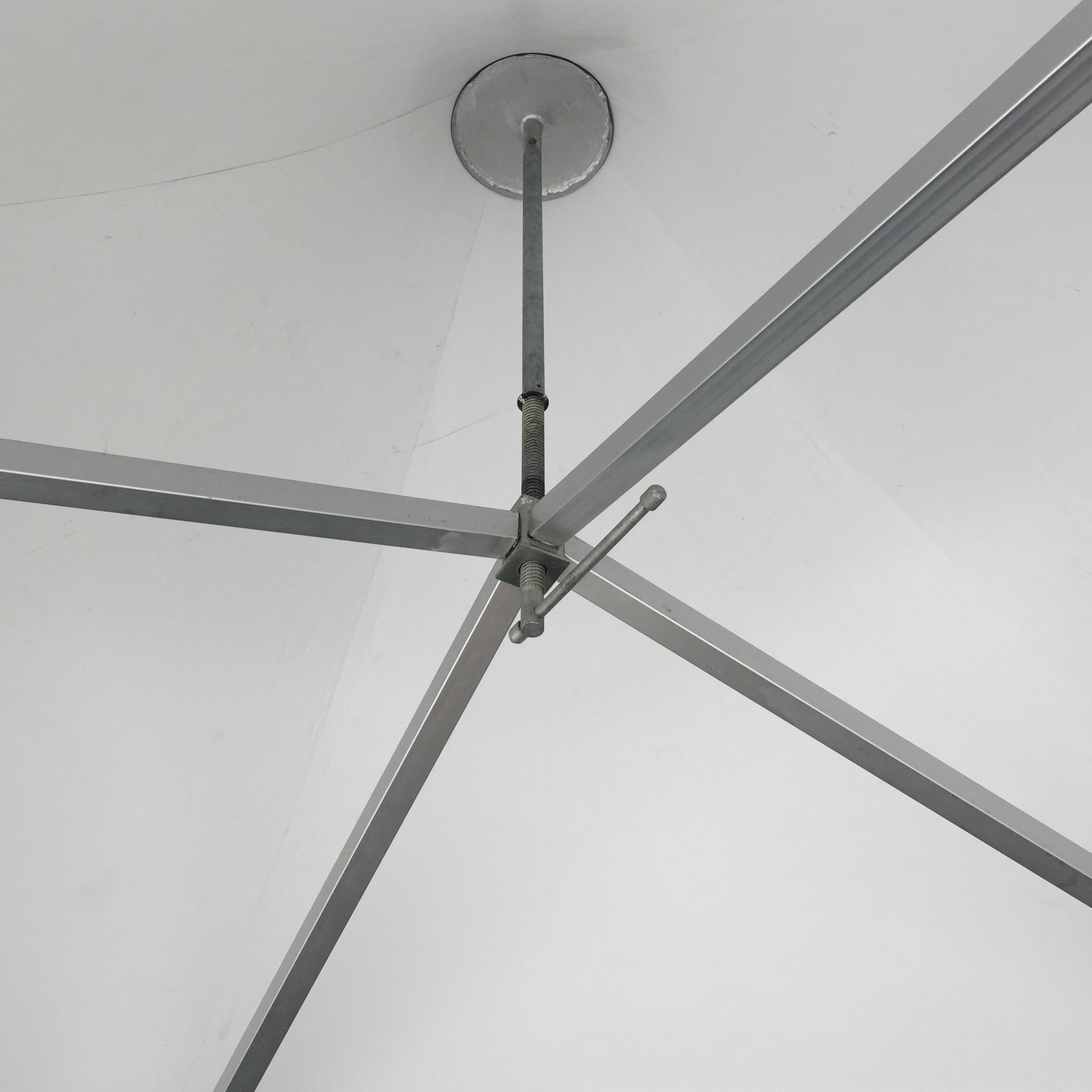

• Threaded rod tensioner
Specification Sheet Download > Instruction > Wind Rating Cert > Fire Test Cert > 4m Engineer Cert >
| Specifications | 4m x 4m |
| Eave Height | 2.5m |
| Ridge Height | 4.85m |
| Clearance | 2m |
| Pitch Height | 1.6m |
| Frame Profile | 63 x 63 x 1.8mm |
| Max Allowed Windspeed | 80km/hr | 0.3kn/m2 |

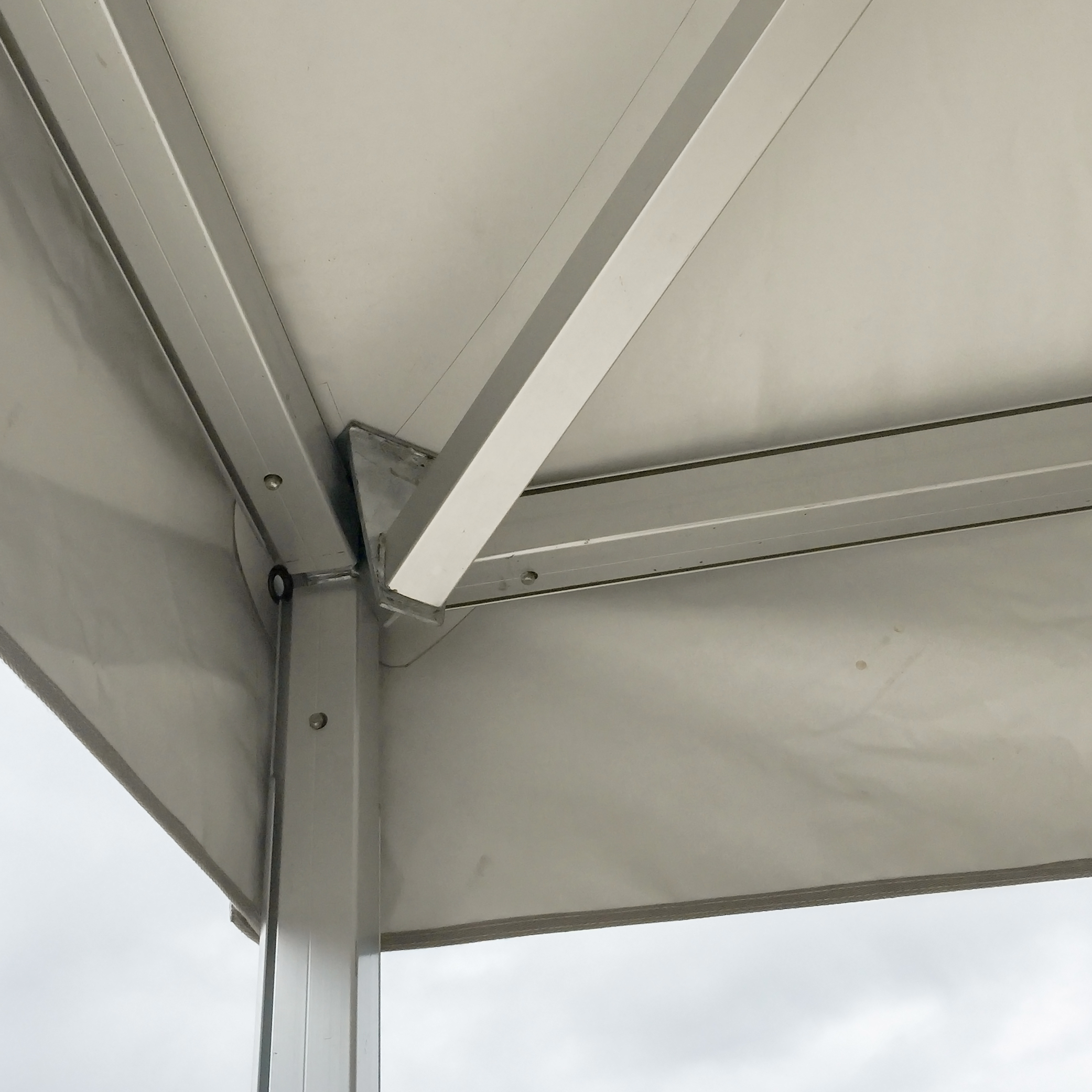

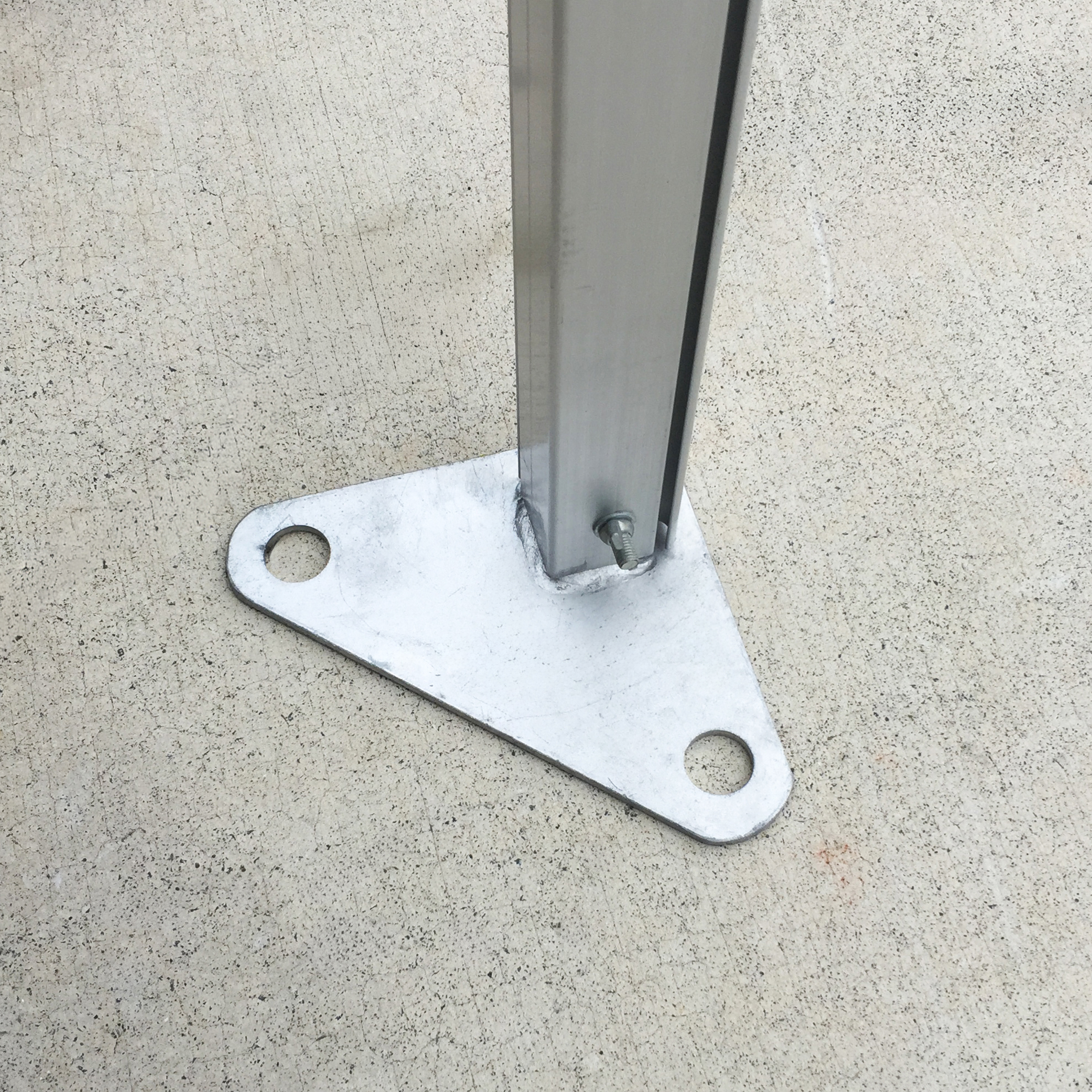

| Eave Connection | Hot-dip galvanized steel insert |
| Framework Material | Hard pressed extruded aluminium 6061/T6 (13Hw) |
| Frame Weight | 124kg |
| Roof Weight | 12.5kg |
| Roof Fabric | 950gsm clear PVC 850gsm white PVC 750gsm coloured PVC 650gsm white PVC walls |
| Frame Warranty | 10 years |
| Roof Warranty | 2 years clear PVC / 5 years white & coloured PVC |
