10m Wide (5m Bay) Event Standard

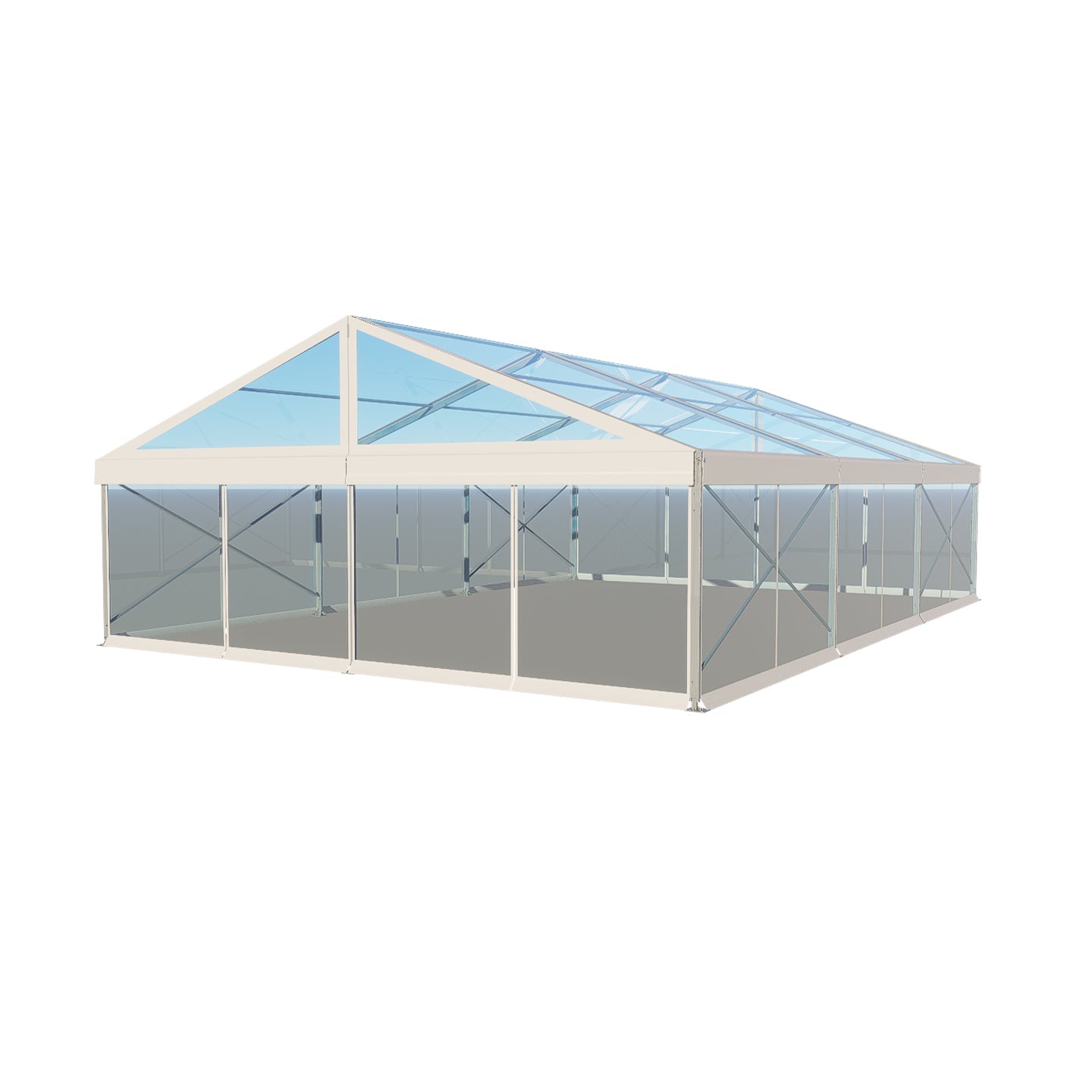

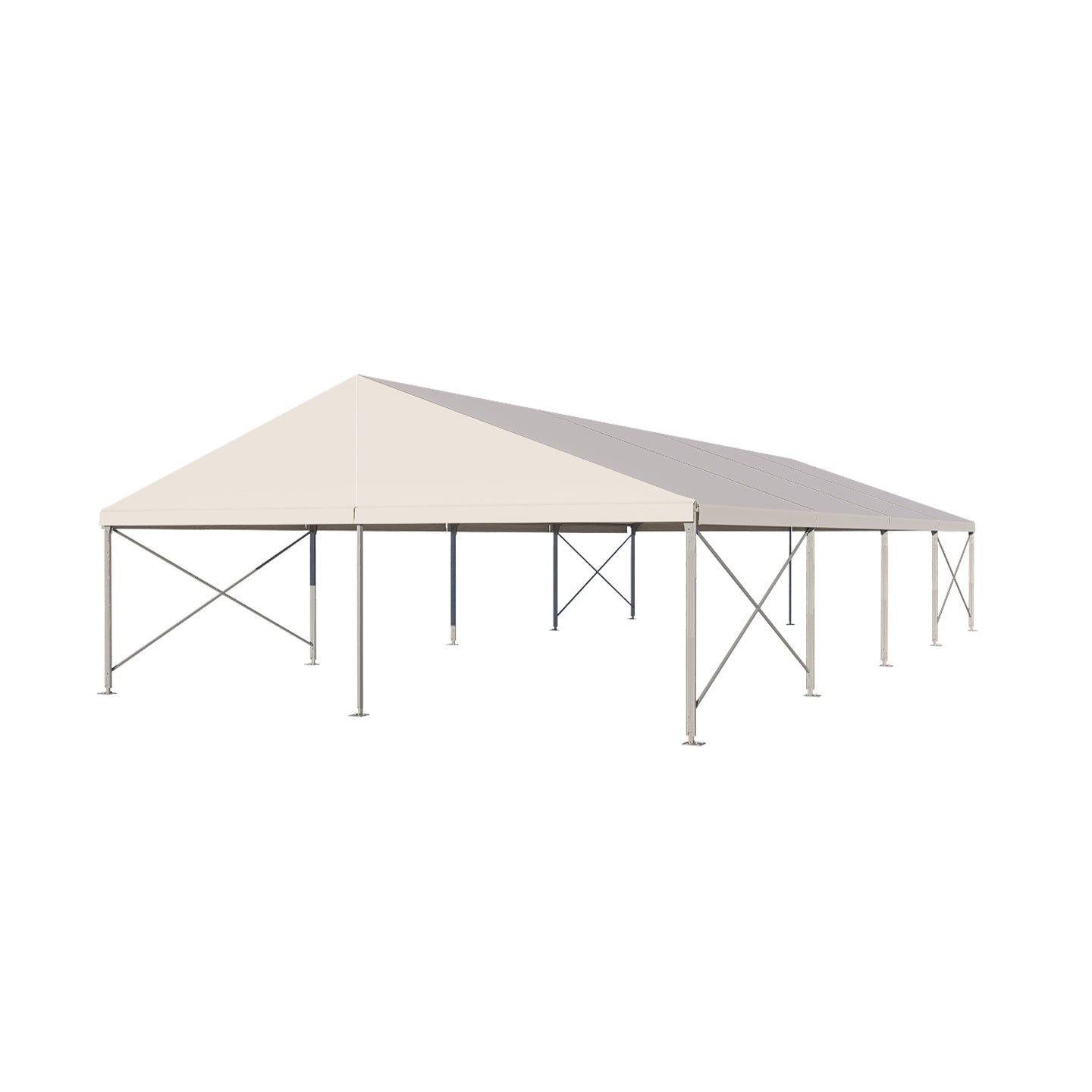

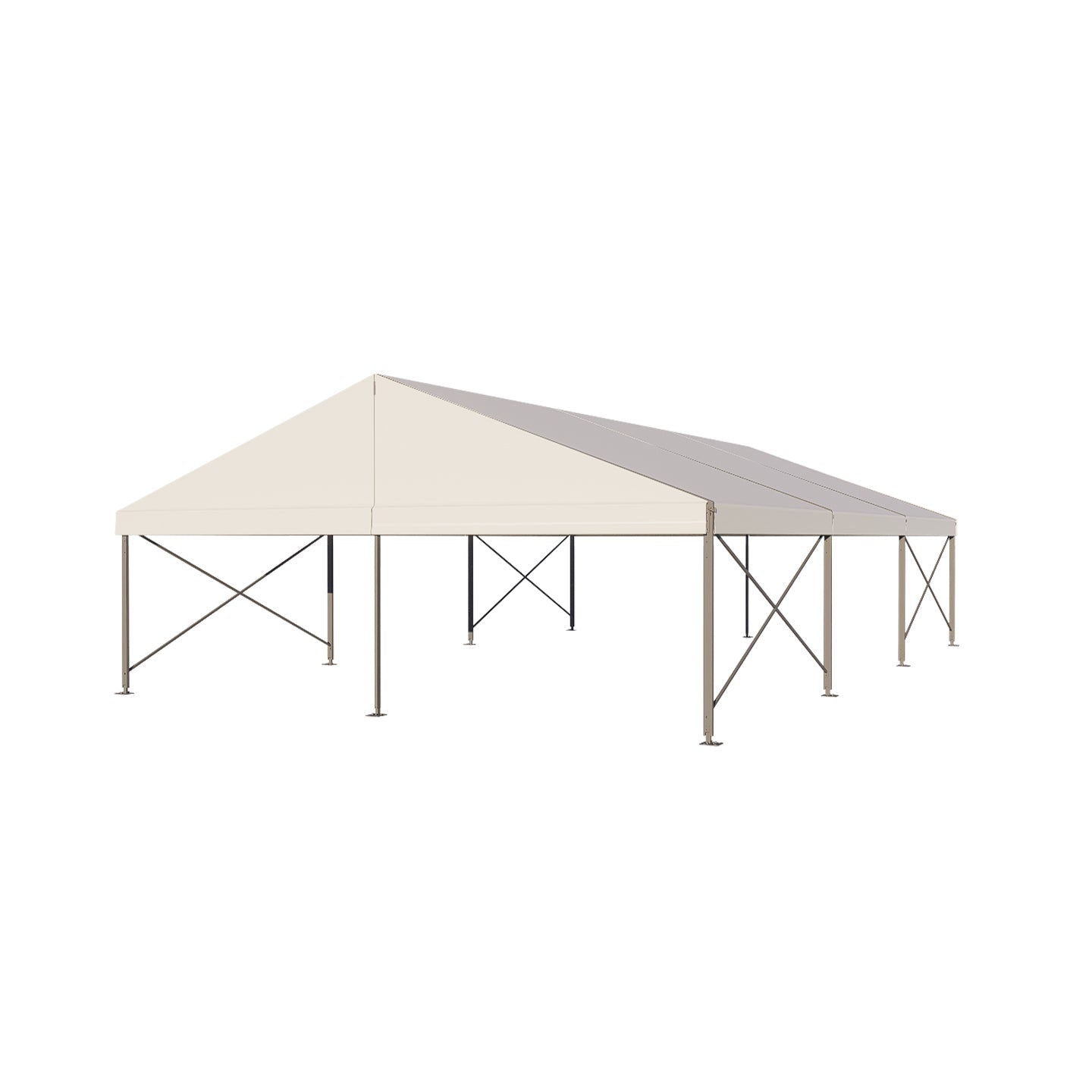

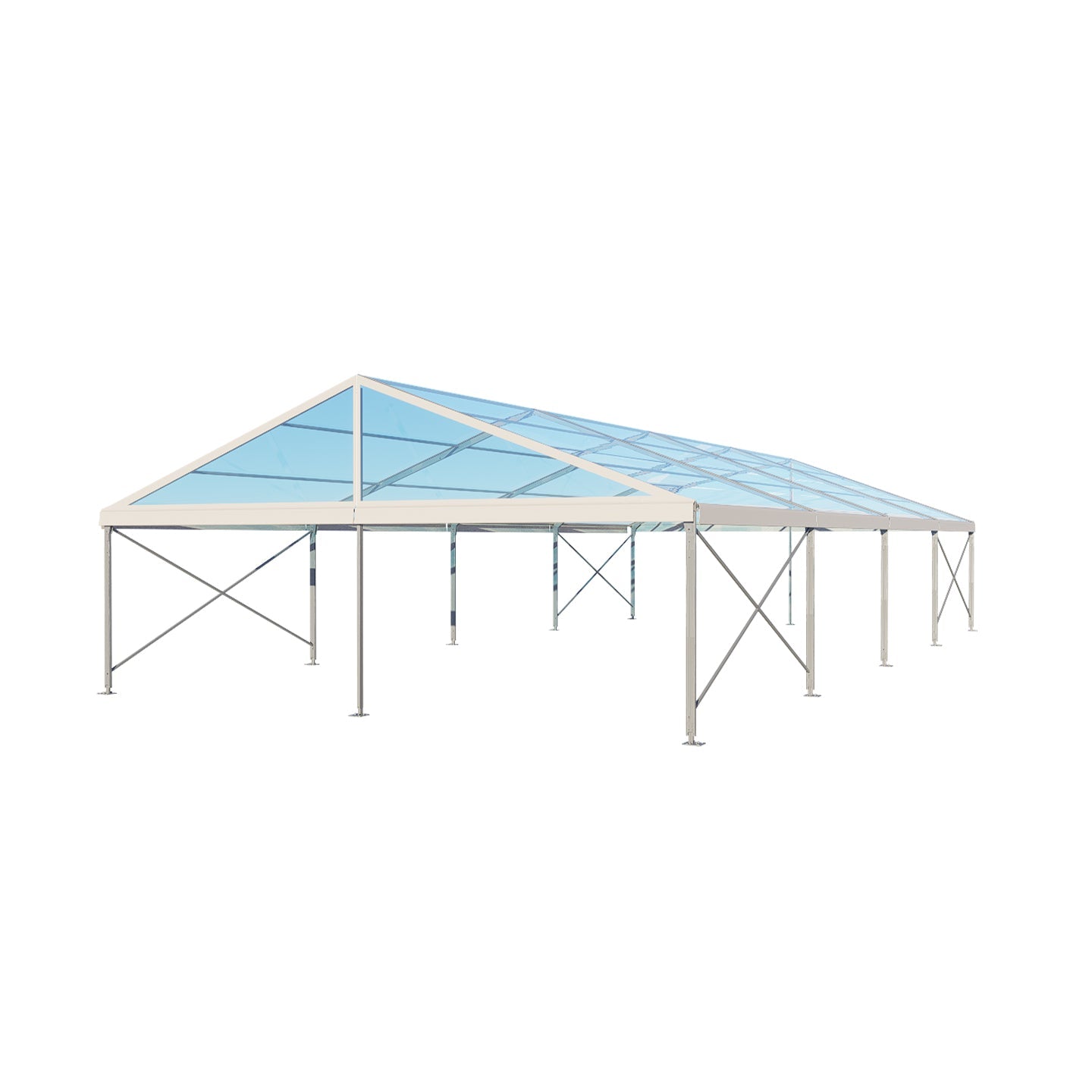

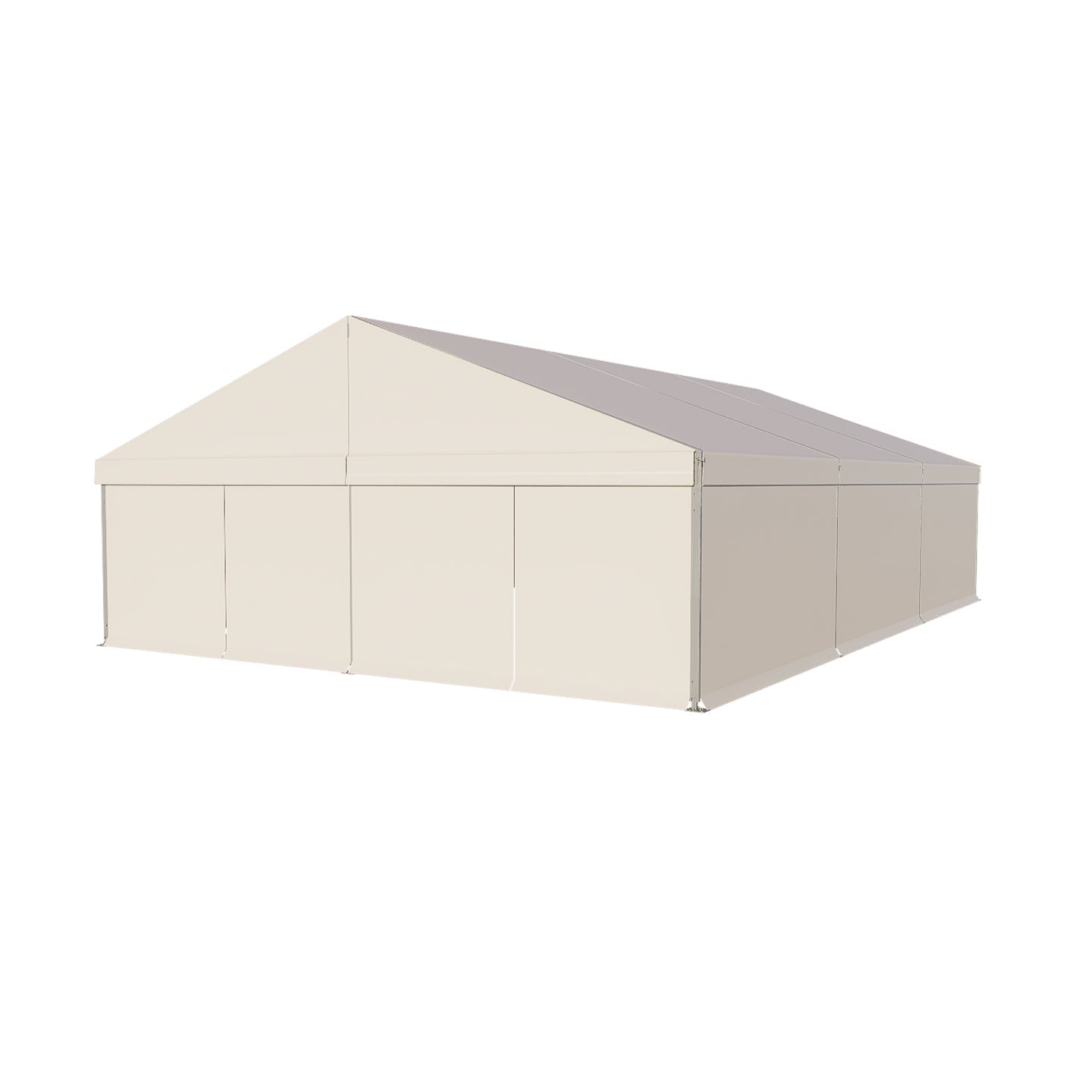

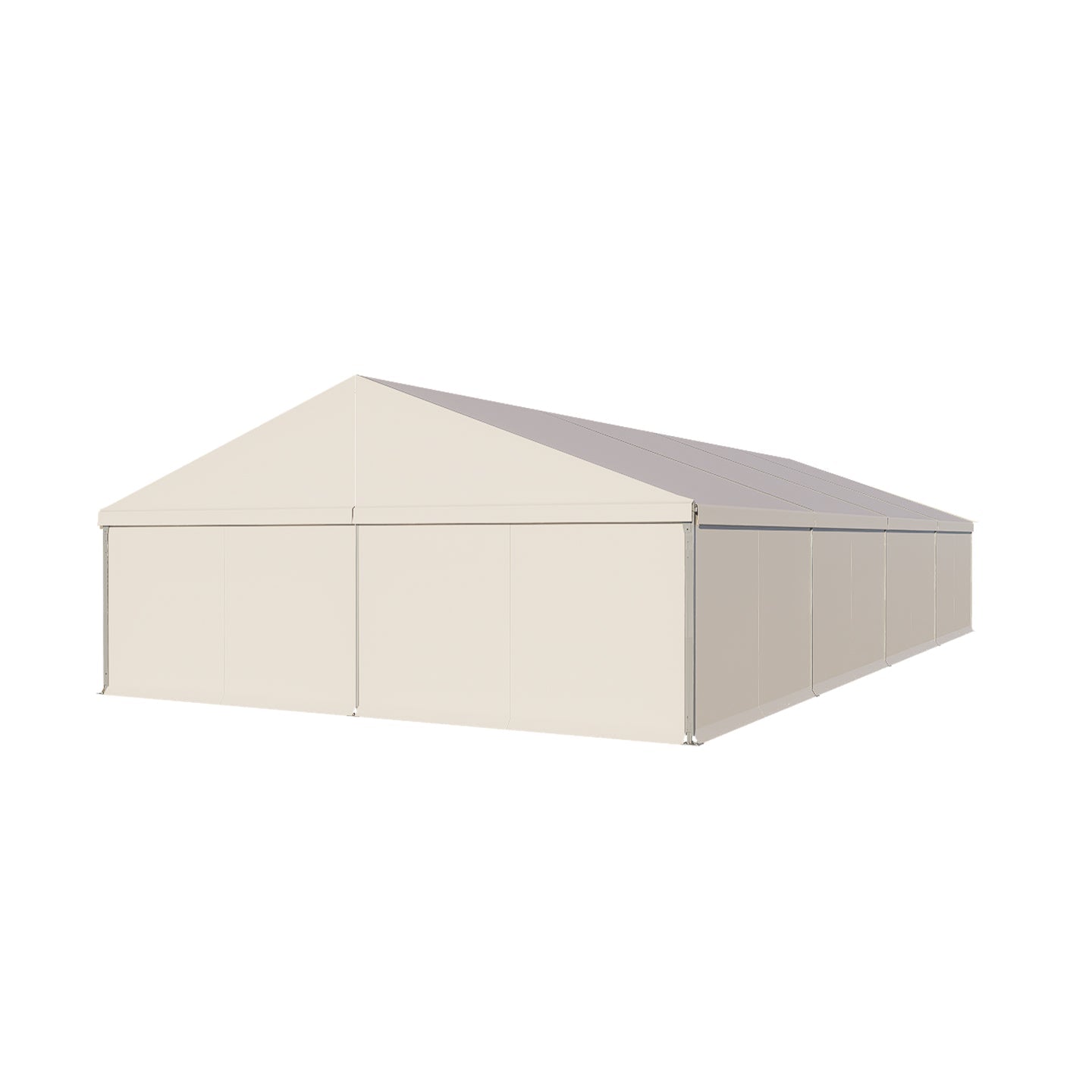

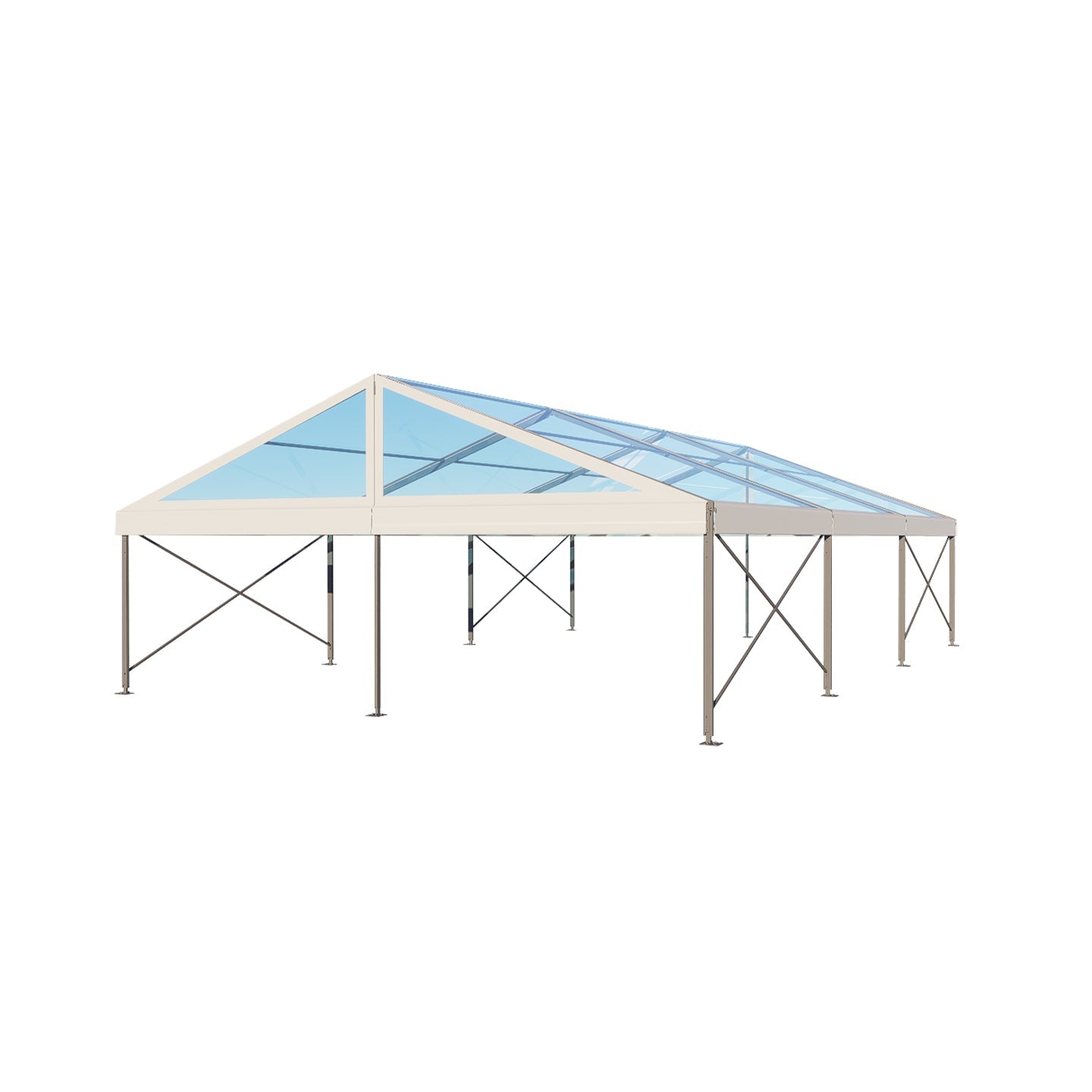

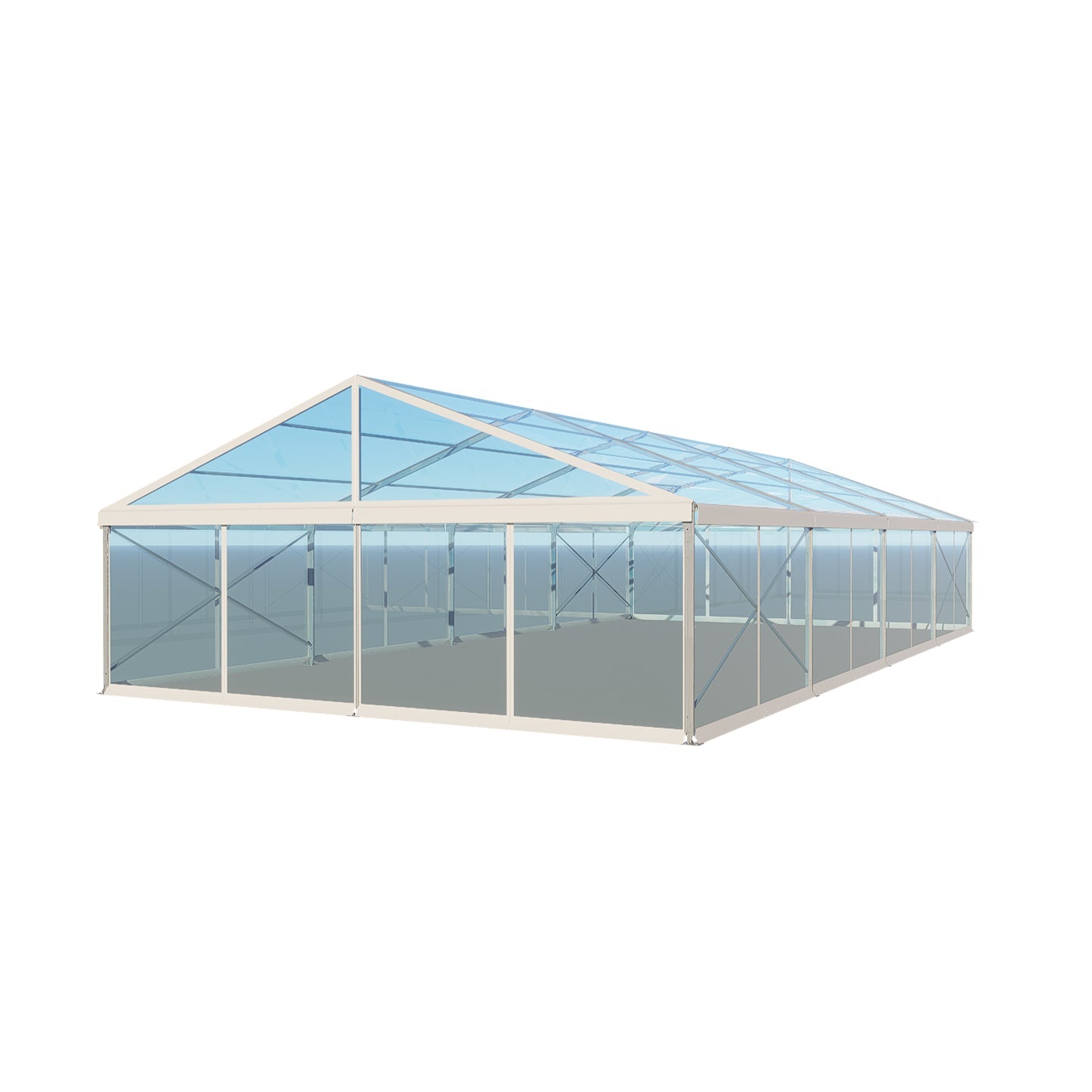

The 10m Wide (5m Bay) Clear Span A-Frame Event Tent from Extreme Marquees is a premium-grade structure engineered for large-scale events. Built with a reinforced aluminium frame, this high-performance event gazebo delivers exceptional durability, safety, and a completely unobstructed interior. Its clear-span design maximises usable space, making it ideal for weddings, corporate functions, exhibitions, and festivals. Designed to withstand New Zealand’s varied weather conditions, this event gazebo combines strength with a sleek, modern aesthetic. The ES Series ensures quick installation and professional presentation, making it a reliable choice for event planners seeking a high-impact event marquee solution.
Oversize product. Forklift or HIAB required for delivery.
Specification Sheet > Instruction > Product Comparison > 8m 10m 12m Engineer Cert > PVC Fire Retardant Certification >
| Clear Span Width | 10m |
| Eave Height | 3m |
| Ridge Height | 4.76m |
| Roof Pitch | 20º |
| Bay Distance | 5m |
| Roof Fixing | Bar tensioning |
| Frame Profile | 122 x 68 x 3mm (4-channel) |
| Max Allowed Windspeed | 80km/hr 0.3kn/m2 |
| Eave Connectors | Hot-dip galvanized steel insert |
| Frame Material | Hard pressed extruded aluminium 6061/T6 (13HW) |
| Roof Fabric | 850gsm white or coloured PVC / 950gsm clear PVC / 650gsm white PVC |
| Frame Warranty | 10 years |
| Roof Warranty | 5 years white or coloured PVC / 2 years printed or clear PVC |
Capacity Chart
| Size | Area (sqm) |
Cocktail Standing |
Theatre Seating |
Seating Trestle Table |
Seating Round Table |
| 10m x 15m | 150 | 200 | 160 | 120 | 100-120 |
| 10m x 20m | 200 | 264 | 224 | 160 | 160-180 |
This capacity chart is provided for general guidance only. Local regulations may dictate allowed capacity which may be different from the numbers we have provided.
Theatre seating
Includes a 1m centre aisle and a 3m section at the front for presentation/ceremony
Trestle tables
2.4m trestle tables seating 8 people each. This number uses the whole marquee, there is no room for anything else such as a dance floor or buffet tables
Round tables
1.8m round tables seating 10-12 each. This number uses the whole marquee, there is no room for anything else such as a dance floor or buffet tables etc.
Add-on accessories available (contact us for pricing)
