Description

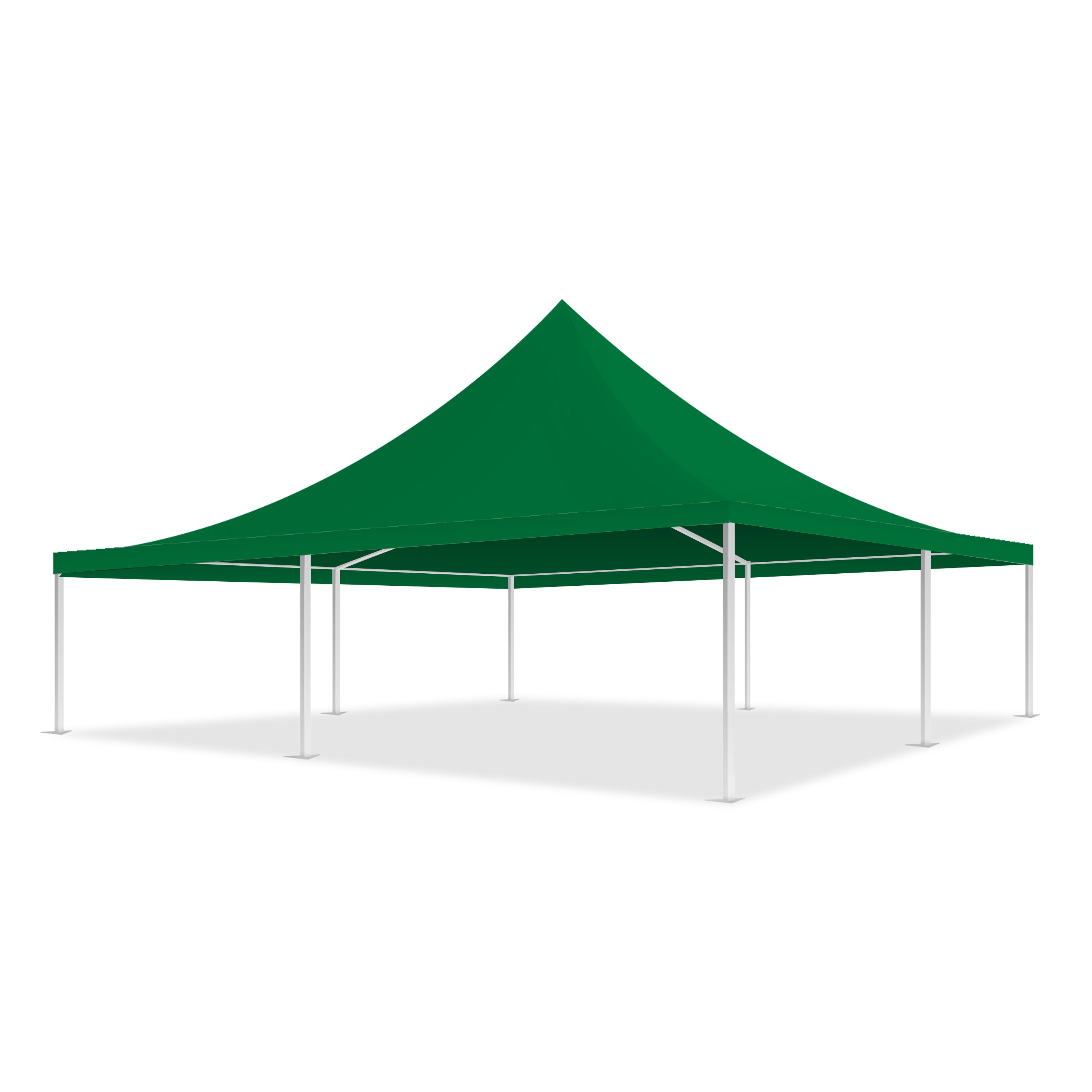

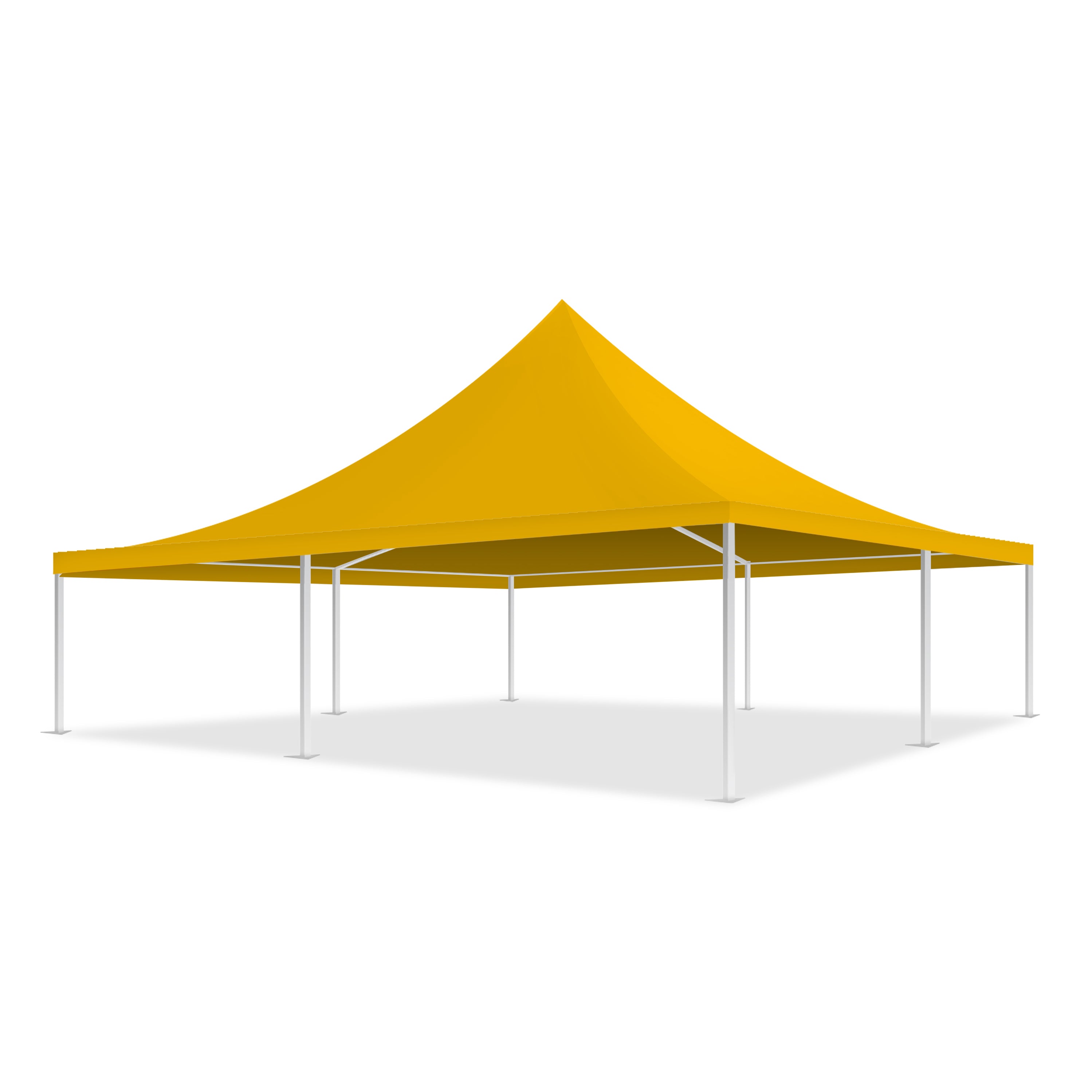

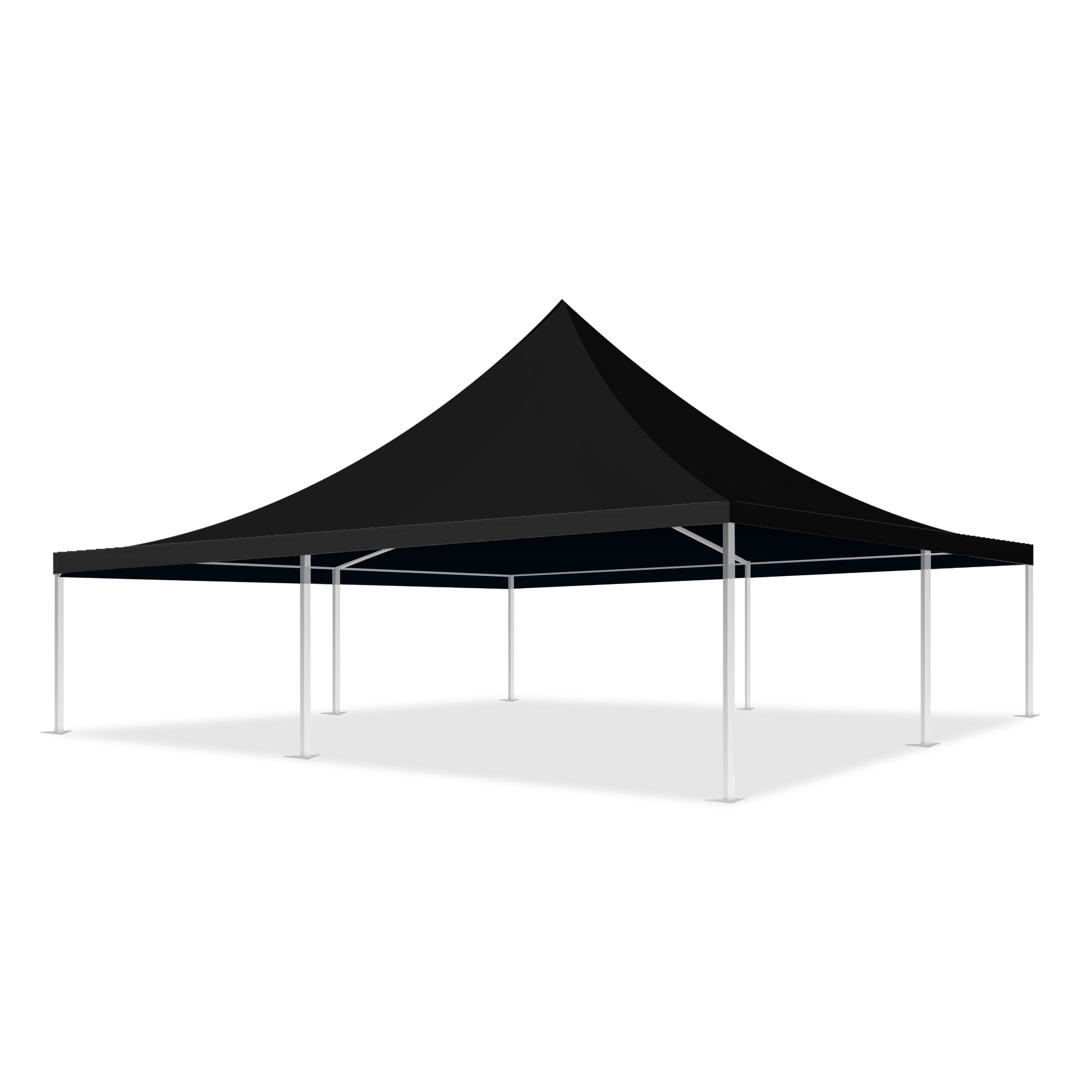

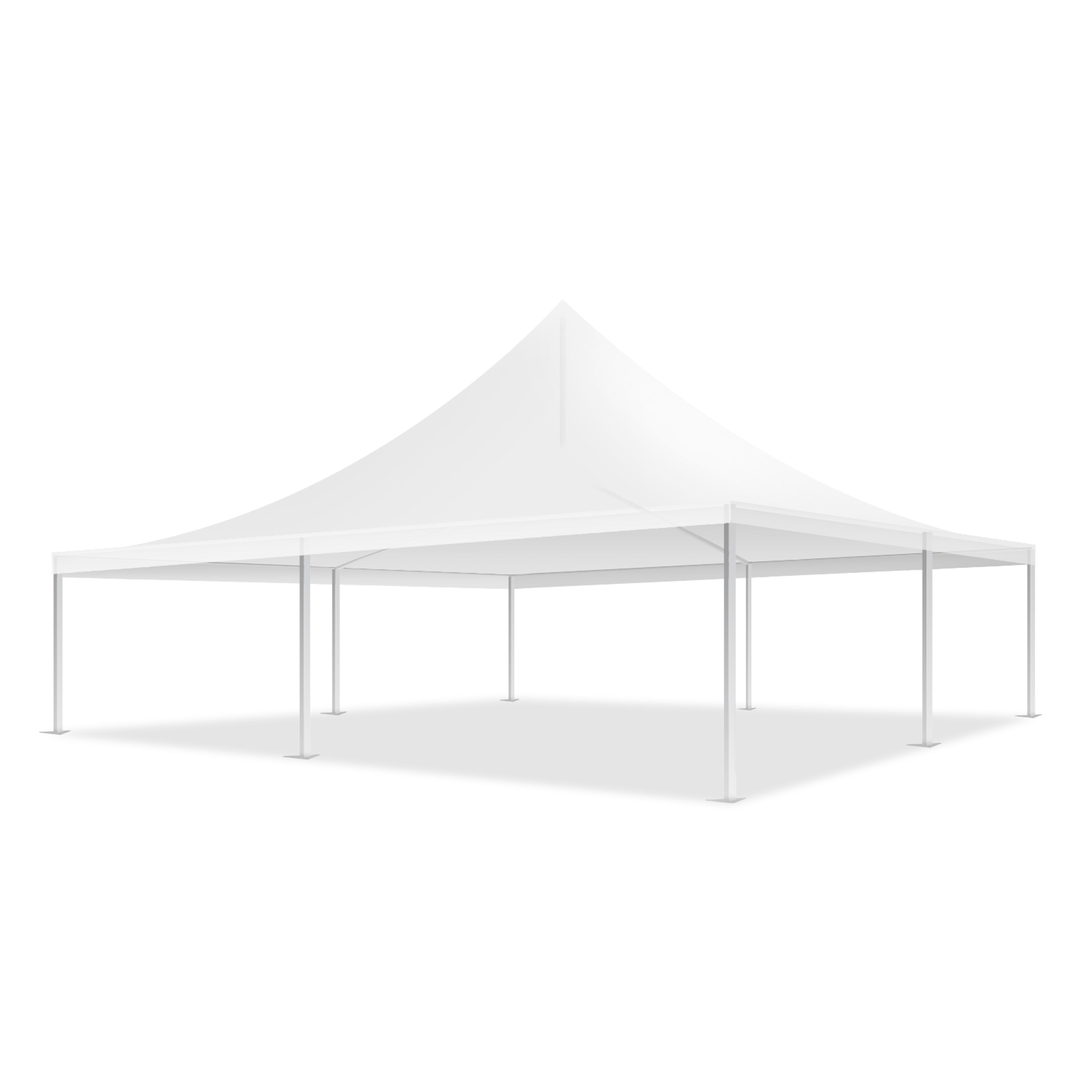

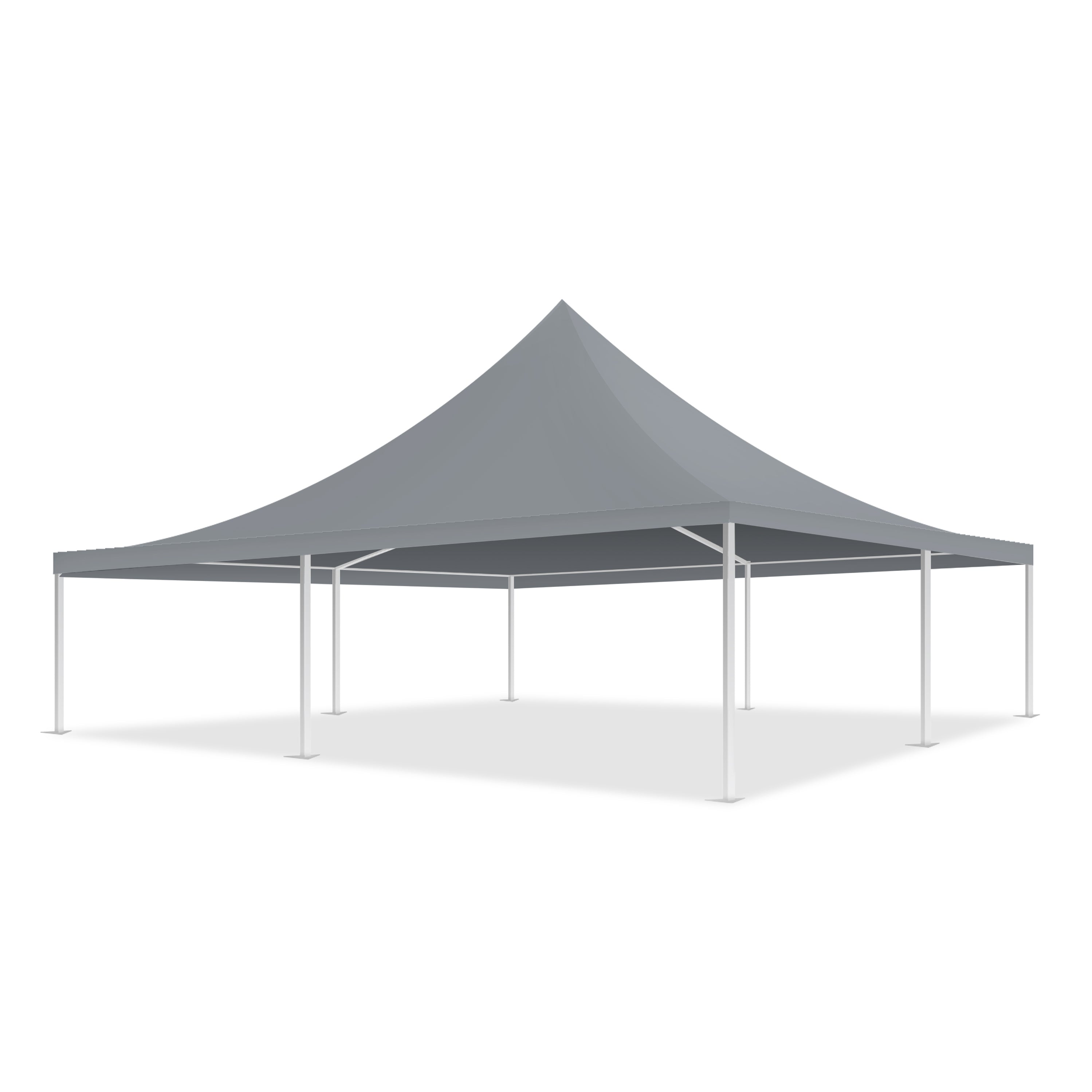

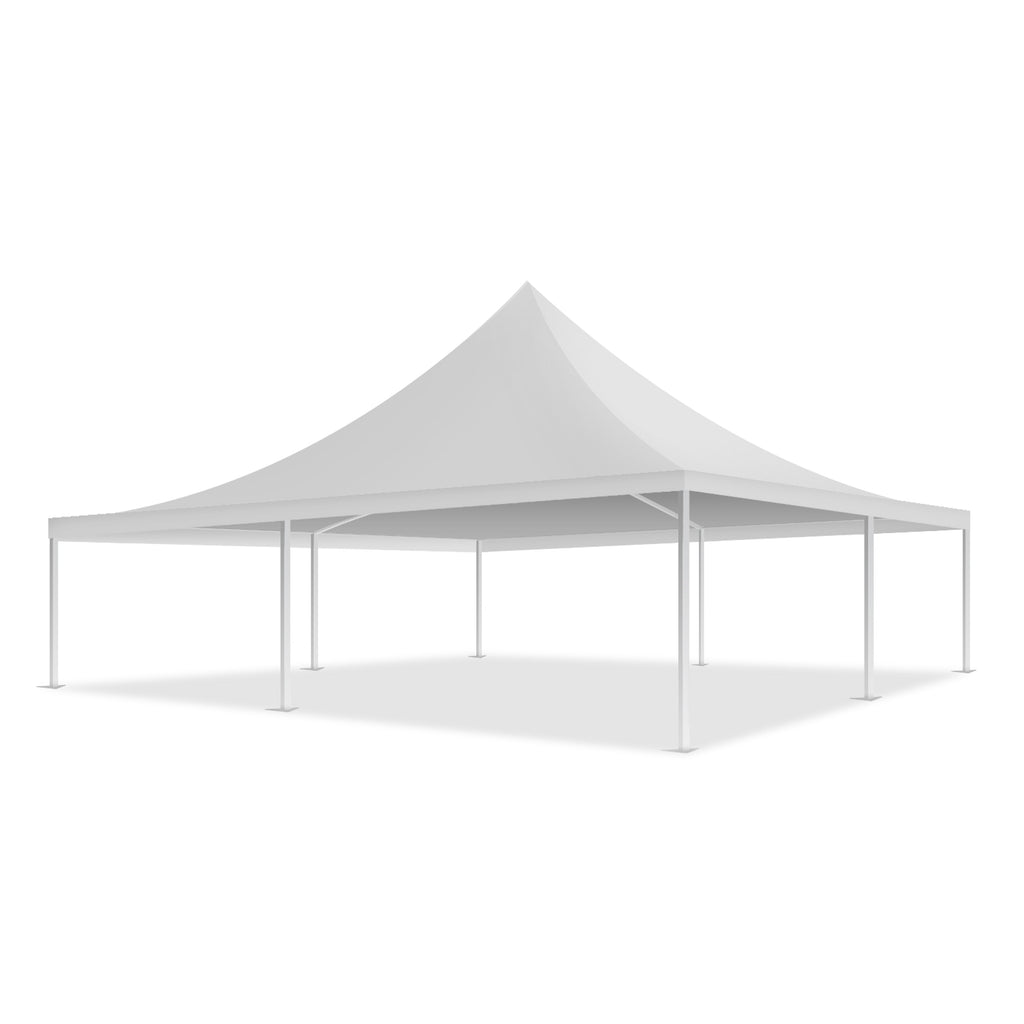

Pinnacle 10m x 10m

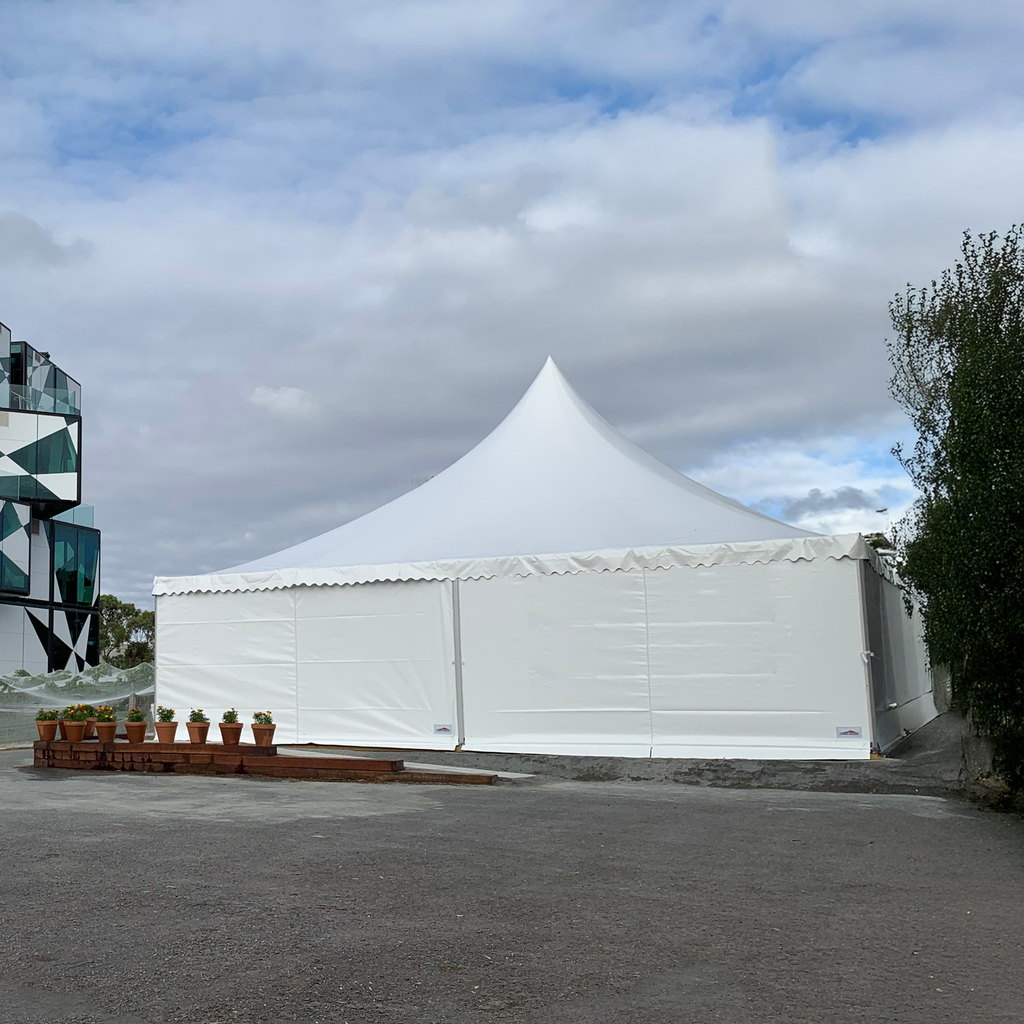

The 10m x 10m Pinnacle Semi-Permanent Tent is a premium outdoor structure designed for long-term performance in commercial environments. Built with a strong aluminium frame and durable roofing, it provides reliable weather protection while maintaining a clean, modern appearance. Ideal for hospitality venues, resorts, and event spaces needing a stylish yet practical solution. This high-quality shelter delivers strength, stability, and minimal maintenance for year-round outdoor use.
Oversize product. Forklift or HIAB required for delivery.
Package Includes: Frame, roof, steel pins & steel pin pullers.
Features
• 122mm aluminium frame profile
• Iconic pagoda-style design

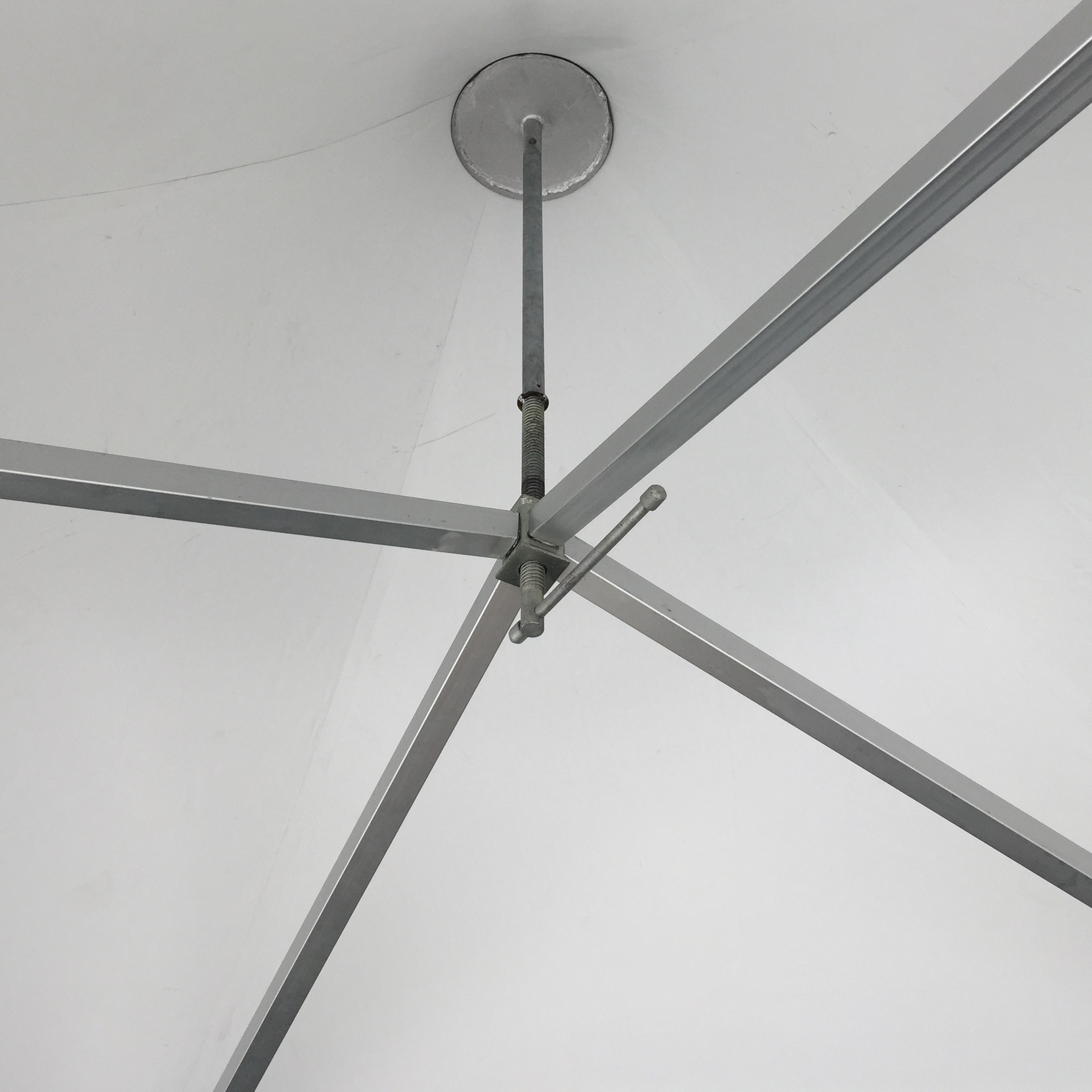

• Threaded rod tensioner
Specification Sheet Download > Instruction > 10m Engineer Cert >
| Specifications | 10m x 10m |
| Eave Height | 2.6m |
| Ridge Height | 6.8m |
| Clearance | 2m |
| Pitch Height | 2.2m |
| Frame Profile | 122 x 68 x 5.5mm |
| Max Allowed Windspeed | 80km/hr | 0.3kn/m2 |

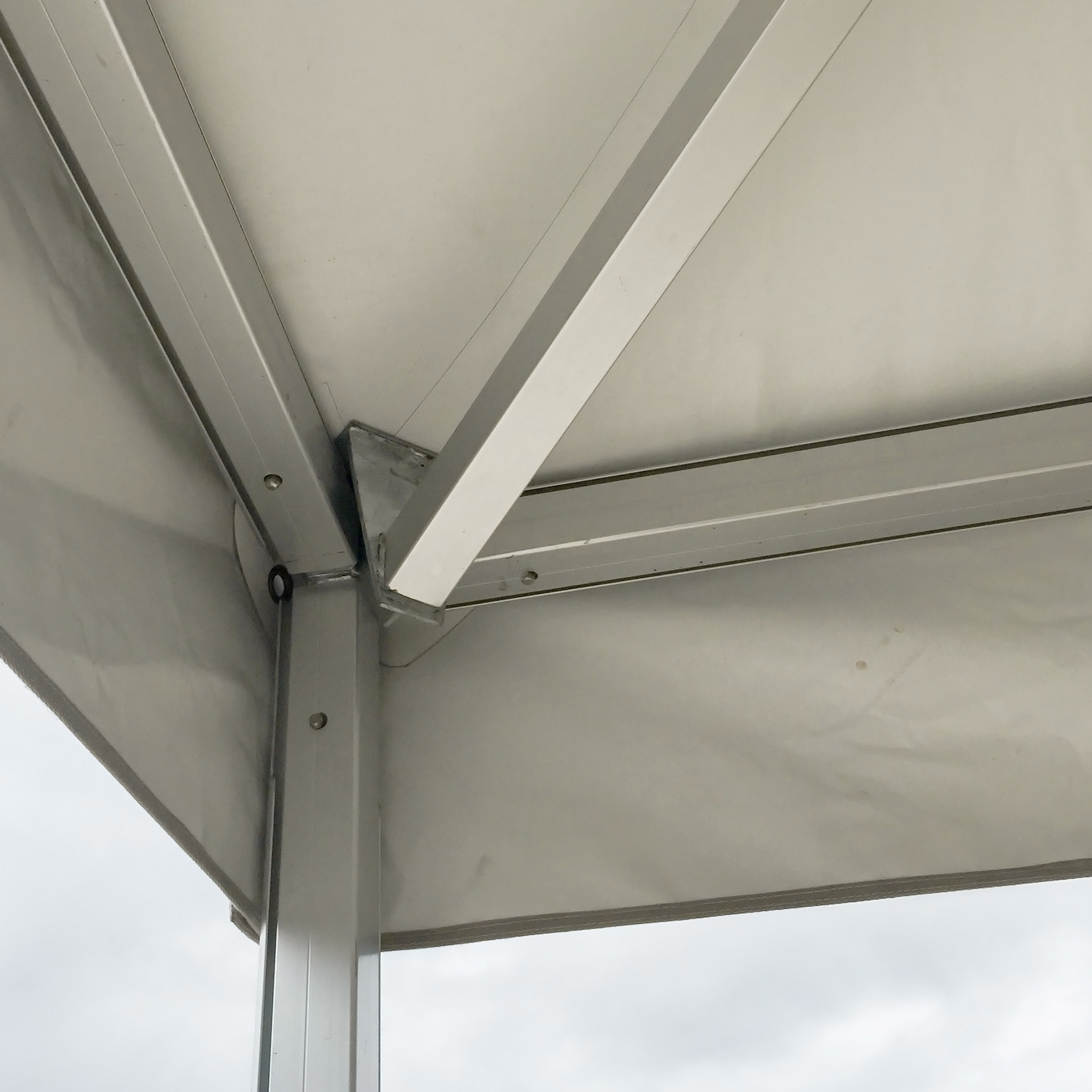

| Eave Connection | Hot-dip galvanized steel insert |
| Framework Material | Hard pressed extruded aluminium 6061/T6 (13Hw) |
| Frame Weight | 567kg |
| Roof Weight | 70.5kg |
| Roof Fabric | 950gsm clear PVC 850gsm white PVC 750gsm coloured PVC 650gsm white PVC walls |
| Frame Warranty | 10 years |
| Roof Warranty | 2 years clear PVC / 5 years white & coloured PVC |
