X7 57MM TECTONIC COMMERCIAL GAZEBOS
Home » FOLDING MARQUEES RANGE » X7 Tectonic Range

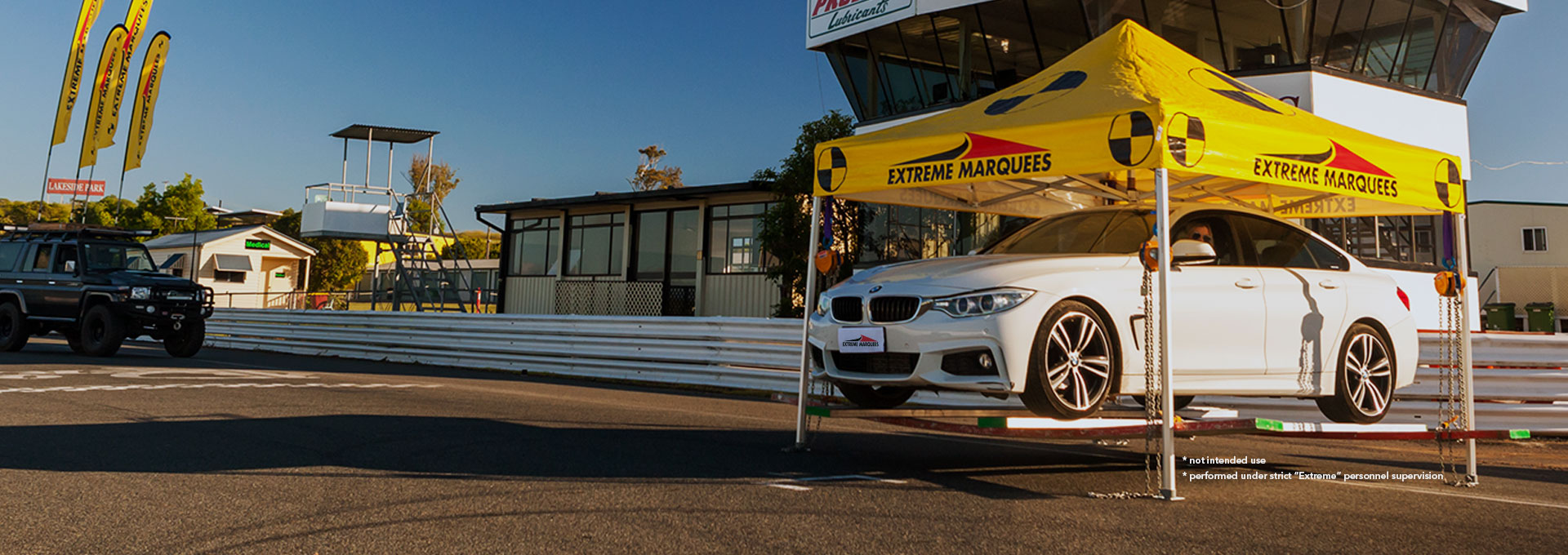

THE X7 57MM TECTONIC – COMMERCIAL HEAVY-DUTY GAZEBO, TENT AND MARQUEE NEW ZEALAND
The X7 Tectonic commercial range features some of the strongest and most durable pop-up gazebos on the market. It is designed with a 57mm hexagonal aluminium frame profile, oversized 36x18mm truss bars, extruded aluminium connectors fastened with steel bolts and heavy-duty galvanized steel feet. Moreover, our revolutionary centre pole spring roof tensioning mechanism ensures effective water run-off. These features have been combined to produce a robust marquee which can withstand intense weather conditions.
The marquee roof is available in three fabrics – PVC-coated polyester, 100% PVC and PU-coated polyester. All fabrics are available in a range of colours along with custom-printing options including the premium UV printing technology for marquees.
X7 Frame Features
Huge range of standard & premium colours available & in stock!
Coloured Frames

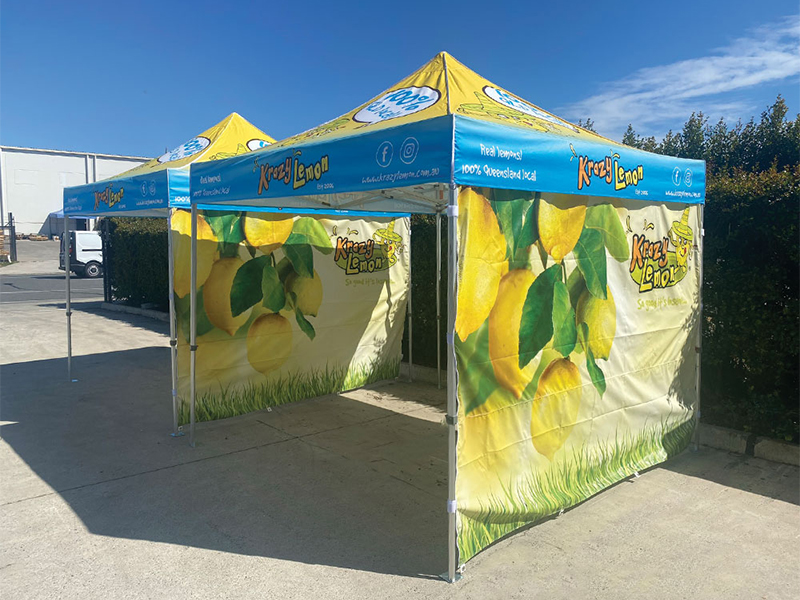

Canopy Customisation
Dye Sublimation, Digital & UV printing options available. Call today to learn more!
Fabric Colours
Aluminium 57mm Leg Profile
57mm x 2mm aircraft aluminium leg profile providing unchallenged strength and durability.
Connectors
Thick extruded aluminium connectors far superior to other plastic connectors on the market.
Truss Bars
Large 36x18mm ribbed truss bars providing strength and rigidity.
Roof Tensioning
Spring loaded roof tensioning system to keep the roof taught for better appearance and rain runoff.
Foot Plate
Large steel footplate that is durable and compatible with Extreme Marquees clip wheels.
Canopy Customisation
Learn more about standard colours and custom printing packages for our wide range of roof options.
Fabric Colours
X7 Frame Features
Coloured Frames
Aluminium 57mm Leg Profile
Foot Plate
Connectors
Truss Bars
SELECT FABRIC
Plain Marquees
Fabric:
500D PVC coated Polyester
Application:
Plain marquees
Specifications:
100% Polyester with PVC backing
Yarn count: 500D x 500D
Weight: 280 gsm
Colourfastness to light: 5-6 En standard
Features
1 year warranty
Fire resistant
Waterproof
UV resistant
Wind resistant
Corners reinforced with PVC
Printed Marquees
Fabric
100% Polyester with PU backing
Application
Custom printed marquees
Specifications
100% Polyester with PU backing
Yarn count: 600D x 600D
Weight: 245 gsm
Colourfastness to light: 5-6 En standard
Features
1 year warranty
Fire resistant
Waterproof
UV resistant
Wind resistant
Corners reinforced with PVC
Dye Sublimation Printing
Dye Sublimation Printing is a multi-stage printing process that results in a final product that is colour rich and vibrant. It involves heating the fabric to 200 degrees Celsius, printing the design on paper and then transferring the ink to the fabric. With dye sublimation printing there is no limit to the number of colours available and no restrictions regarding complexity of design. Dye sublimation printing is also scratch resistant with the ink being infused within the fabric rather than just being a layer of ink on top of the fabric.
REVERSE COLOUR
Available on printed 600D PU Coated Polyester products
Plain & Printed Marquees
Fabric
580gsm Belgium 100% PVC
Application
Plain marquees
Custom printed marquees
Specifications
100% PVC
Weight: 580 gsm
Colourfastness to light: 5-6 En standard
Features
2 year warranty printed
5 year warranty plain
Fire resistant
Waterproof
UV resistant
Wind resistant
Hot lacquer
Seams heat welded
Digital Printing
Extreme Marquees uses digital printing on the majority of custom PVC products. PVC printing is a tried and tested printing method whereby the ink is placed directly onto the PVC product. To avoid ink scratching Extreme Marquees apply a layer of lacquer over the printed surface.
Plain Marquees
Fabric
500D PVC coated Polyester
Application
Plain marquees
Specifications
100% Polyester with PVC backing
Yarn count: 500D x 500D
Weight: 280 gsm
Colourfastness to light: 5-6 En standard
Features
1 year warranty
Fire resistant
Waterproof
UV resistant
Wind resistant
Corners reinforced with PVC
Printed Marquees
Fabric
100% Polyester with PU backing
Application
Custom printed marquees
Specifications
100% Polyester with PVC backing
Yarn count: 600D x 600D
Weight: 245 gsm
Colourfastness to light: 5-6 En standard
Features
1 year warranty
Fire resistant
Waterproof
UV resistant
Wind resistant
Corners reinforced with PVC
Dye Sublimation Printing
Dye sublimation printing involves the use of a digital printer to produce a print on sublimation transfer paper. The sublimation paper is then placed into a heat press with the marquee fabric and exposed to a temperature of 200 degrees Celsius. The artwork is then transferred from the paper to the marquee fabric. The marquee fabric has the artwork embedded in the material and the design will not scratch from the surface. The fabric has a matte finish, which photographs well and suits indoor and outdoor use.’
REVERSE COLOUR
Available on printed 600D PU Coated Polyester products
Plain & Printed Marquees
Fabric
580gsm Belgium 100% PVC
Application
Plain marquees
Custom printed marquees
Specifications
100% PVC
Weight: 580 gsm
Colourfastness to light: 5-6 En standard
Features
2 year warranty printed
5 year warranty plain
Fire resistant
Waterproof
UV resistant
Wind resistant
Hot lacquer
Seams heat welded
Digital print process
Large format digital printing refers to method of printing from a digital based image directly to the PVC marquee material.
Once the print has dried a hot lacquer is applied to the print surface to seal the print to avoid scratches.
SELECT SIZE
3m x 3m Specifications:
Strength: Super Heavy Duty
Frame: Aluminium
Height: 3.29m
Clearance: 2m
Main Profile Size: 57mm
Main Profile: Hexagonal
Truss Bars: 36 x 18mm
Box Size: 163 x 34 x 33cm
Connectors: Aluminium
Fabric:
500D PVC Coated Polyester
600D PU Coated Polyester
580GSM 100% Belgian PVC
Warranty:
Frame: 10 Year
Fabric: Polyester Plain & Printed 1 Year
PVC Plain 5 Years, Printed 2 Years & Clear PVC 2 Years
Resources:
Specification Sheet
Instructions
Artwork PDF
Certification:
Engineer Certification
Fire Retardant Polyester
Water Penetration Polyester
Weight:
Frame Weight: 33kg
Poly Roof Weight: 7kg

3.0 x 4.5 Specifications:
Strength: Super Heavy Duty
Frame: Aluminium
Height: 3.29m
Clearance: 2m
Main Profile Size: 57mm
Main Profile: Hexagonal
Truss Bars: 36 x 18mm
Box Size: 163 x 46 x 33cm
Connectors: Aluminium
Fabric:
500D PVC Coated Polyester
600D PU Coated Polyester
580GSM 100% Belgian PVC
Warranty:
Frame: 10 Year
Fabric: Polyester Plain & Printed 1 Year
PVC Plain 5 Years, Printed 2 Years & Clear PVC 2 Years
Resources:
Specification Sheet
Instructions
Artwork PDF
Certification:
Engineer Certification
Fire Retardant Polyester
Water Penetration Polyester
Weight:
Frame Weight: 43kg
Poly Roof Weight: 10kg

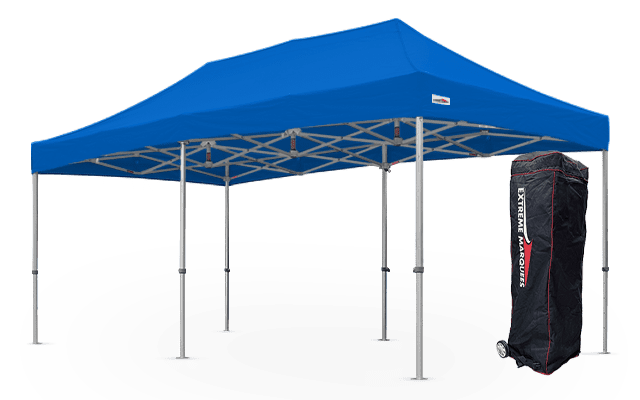

3.0 x 6.0 Specifications:
Strength: Super Heavy Duty
Frame: Aluminium
Height: 3.29m
Clearance: 2m
Main Profile Size: 57mm
Main Profile: Hexagonal
Truss Bars: 36 x 18mm
Box Size: 163 x 58 x 33cm
Connectors: Aluminium
Fabric:
500D PVC Coated Polyester
600D PU Coated Polyester
580GSM 100% Belgian PVC
Warranty:
Frame: 10 Year
Fabric: Polyester Plain & Printed 1 Year
PVC Plain 5 Years, Printed 2 Years & Clear PVC 2 Years
Resources:
Specification Sheet
Instructions
Artwork PDF
Certification:
Engineer Certification
Fire Retardant Polyester
Water Penetration Polyester
Weight:
Frame Weight: 56kg
Poly Roof Weight: 13kg

4.0 x 4.0 Specifications:
Strength: Super Heavy Duty
Frame: Aluminium
Height: 3.73m
Clearance: 2.1m
Main Profile Size: 57mm
Main Profile: Hexagonal
Truss Bars: 36 x 18mm
Box Size: 203 x 34 x 33cm
Connectors: Aluminium
Fabric:
500D PVC Coated Polyester
600D PU Coated Polyester
580GSM 100% Belgian PVC
Warranty:
Frame: 10 Year
Fabric: Polyester Plain & Printed 1 Year
PVC Plain 5 Years, Printed 2 Years & Clear PVC 2 Years
Resources:
Specification Sheet
Instructions
Artwork PDF
Certification:
Engineer Certification
Fire Retardant Polyester
Water Penetration Polyester
Weight:
Frame Weight: 35kg
Poly Roof Weight: 11kg

4.0 x 6.0 Specifications:
Strength: Super Heavy Duty
Frame: Aluminium
Height: 3.73m
Clearance: 2.1m
Main Profile Size: 57mm
Main Profile: Hexagonal
Truss Bars: 36 x 18mm
Box Size: 203 x 46 x 33cm
Connectors: Aluminium
Fabric:
500D PVC Coated Polyester
600D PU Coated Polyester
580GSM 100% Belgian PVC
Warranty:
Frame: 10 Year
Fabric: Polyester Plain & Printed 1 Year
PVC Plain 5 Years, Printed 2 Years & Clear PVC 2 Years
Resources:
Specification Sheet
Instructions
Artwork PDF
Certification:
Engineer Certification
Fire Retardant Polyester
Water Penetration Polyester
Weight:
Frame Weight: 51kg
Poly Roof Weight: 15kg

4.0 x 8.0 Specifications:
Strength: Super Heavy Duty
Frame: Aluminium
Height: 3.73m
Clearance: 2.1m
Main Profile Size: 57mm
Main Profile: Hexagonal
Truss Bars: 36 x 18mm
Box Size: 208 x 57 x 33cm
Connectors: Aluminium
Fabric:
500D PVC Coated Polyester
600D PU Coated Polyester
580GSM 100% Belgian PVC
Warranty:
Frame: 10 Year
Fabric: Polyester Plain & Printed 1 Year
PVC Plain 5 Years, Printed 2 Years & Clear PVC 2 Years
Resources:
Specification Sheet
Instructions
Artwork PDF
Certification:
Engineer Certification
Fire Retardant Polyester
Water Penetration Polyester
Weight:
Frame Weight: 69kg
Poly Roof Weight: 19kg

5.0 x 5.0 Specifications:
Strength: Super Heavy Duty
Frame: Aluminium
Height: 4.13m
Clearance: 2.13m
Main Profile Size: 40mm
Main Profile: Square
Truss Bars: 32 x 16mm
Connectors: Aluminium
Box Size: 175x56x56cm
Fabric:
500D PVC Coated Polyester
600D PU Coated Polyester
580GSM 100% Belgian PVC
Warranty:
Frame: 10 Year
Fabric: Polyester Plain & Printed 1 Year
PVC Plain 5 Years, Printed 2 Years & Clear PVC 2 Years
Resources:
Specification Sheet
Instructions
Artwork PDF
Certification:
Engineer Certification
Fire Retardant Polyester
Water Penetration Polyester
Weight:
Frame Weight: 70kg
Poly Roof Weight: 16kg

6.0 x 6.0 Specifications:
Strength: Super Heavy Duty
Frame: Aluminium
Height: 3.84m
Clearance: 2m
Main Profile Size: 57mm
Main Profile: Hexagonal
Truss Bars: 36 x 18mm
Connectors: Aluminium
Box Size: 175x56x56cm
Fabric:
500D PVC Coated Polyester
600D PU Coated Polyester
580GSM 100% Belgian PVC
Warranty:
Frame: 10 Year
Fabric: Polyester Plain & Printed 1 Year
PVC Plain 5 Years, Printed 2 Years & Clear PVC 2 Years
Resources:
Specification Sheet
Instructions
Artwork PDF
Certification:
Engineer Certification
Fire Retardant Polyester
Water Penetration Polyester
Weight:
Frame Weight: 110kg
Poly Roof Weight: 20kg

3.0 x 3.0
Strength: Super Heavy Duty
Frame: Aluminium
Height: 3.29m
Clearance: 2m
Main Profile Size: 57mm
Main Profile: Hexagonal
Truss Bars: 36 x 18mm
Box Size: 163 x 34 x 33cm
Connectors: Aluminium
Weight:
Frame Weight: 33kg
Poly Roof Weight: 7kg
Fabric:
500D PVC Coated Polyester
600D PU Coated Polyester
580GSM 100% Belgian PVC
Warranty:
Frame: 10 Year
Fabric: Polyester Plain & Printed 1 Year
UV Printed 2 Years
PVC Plain 5 Years, Printed 2 Years & Clear PVC 2 Years
Resources:
Specification Sheet
Instructions
Artwork PDF
Certification:
Engineer Certification
Fire Retardant Polyester
Water Penetration Polyester
Production & Delivery
Plain Marquees: Dispatched in one business day
Printed Marquees: Approximately two weeks
Production & delivery times are estimates and start after artwork approval and full payment. If you have a tight due date give our team a call regarding expediting your order.
Returns
If you wish to return your product due to a change of mind, the product must be in new, unused condition. All freight charges incurred by Extreme Marquees are non-refundable.
3.0 x 4.5
Frame Specifications:
Strength: Super Heavy Duty
Frame: Aluminium
Height: 3.29m
Clearance: 2m
Main Profile Size: 57mm
Main Profile: Hexagonal
Truss Bars: 36 x 18mm
Box Size: 163 x 46 x 33cm
Connectors: Aluminium
Weight:
Frame Weight: 43kg
Poly Roof Weight: 10kg
Fabric:
500D PVC Coated Polyester
600D PU Coated Polyester
580GSM 100% Belgian PVC
Warranty:
Frame: 10 Year
Fabric: Polyester Plain & Printed 1 Year
UV Printed 2 Years PVC Plain 5 Years,
Printed 2 Years & Clear PVC 2 Years
Resources:
Specification Sheet
Instructions
Artwork PDF
Certification:
Engineer Certification
Fire Retardant Polyester
Water Penetration Polyester
Production & Delivery
Plain Marquees: Dispatched in one business day
Printed Marquees: Approximately two weeks
Production & delivery times are estimates and start after artwork approval and full payment. If you have a tight due date give our team a call regarding expediting your order.
Returns
If you wish to return your product due to a change of mind, the product must be in new, unused condition. All freight charges incurred by Extreme Marquees are non-refundable.
3.0 x 6.0
Frame Specifications:
Strength: Super Heavy Duty
Frame: Aluminium
Height: 3.29m
Clearance: 2m
Main Profile Size: 57mm
Main Profile: Hexagonal
Truss Bars: 36 x 18mm
Box Size: 163 x 58 x 33cm
Connectors: Aluminium
Weight:
Frame Weight: 56kg
Poly Roof Weight: 13kg
Fabric:
500D PVC Coated Polyester
600D PU Coated Polyester
580GSM 100% Belgian PVC
Warranty:
Frame: 10 Year
Fabric: Polyester Plain & Printed 1 Year
UV Printed 2 Years
PVC Plain 5 Years, Printed 2 Years & Clear PVC 2 Years
Resources:
Specification Sheet
Instructions
Artwork PDF
Certification:
Engineer Certification
Fire Retardant Polyester
Water Penetration Polyester
Production & Delivery
Plain Marquees: Dispatched in one business day
Printed Marquees: Approximately two weeks
Production & delivery times are estimates and start after artwork approval and full payment. If you have a tight due date give our team a call regarding expediting your order.
Returns
If you wish to return your product due to a change of mind, the product must be in new, unused condition. All freight charges incurred by Extreme Marquees are non-refundable.
4.0 x 4.0
Frame Specifications:
Strength: Super Heavy Duty
Frame: Aluminium
Height: 3.73m
Clearance: 2.1m
Main Profile Size: 57mm
Main Profile: Hexagonal
Truss Bars: 36 x 18mm
Box Size: 203 x 34 x 33cm
Connectors: Aluminium
Weight:
Frame Weight: 35kg
Poly Roof Weight: 11kg
Fabric:
500D PVC Coated Polyester
600D PU Coated Polyester
580GSM 100% Belgian PVC
Warranty:
Frame: 10 Year
Fabric: Polyester Plain & Printed 1 Year
PVC Plain 5 Years, Printed 2 Years & Clear PVC 2 Years
Resources:
Specification Sheet
Instructions
Artwork PDF
Certification:
Engineer Certification
Fire Retardant Polyester
Water Penetration Polyester
Production & Delivery
Plain Marquees: Dispatched in one business day
Printed Marquees: Approximately two weeks
Production & delivery times are estimates and start after artwork approval and full payment. If you have a tight due date give our team a call regarding expediting your order.
Returns
If you wish to return your product due to a change of mind, the product must be in new, unused condition. All freight charges incurred by Extreme Marquees are non-refundable.
4.0 x 6.0
Frame Specifications:
Strength: Super Heavy Duty
Frame: Aluminium
Height: 3.73m
Clearance: 2.1m
Main Profile Size: 57mm
Main Profile: Hexagonal
Truss Bars: 36 x 18mm
Box Size: 203 x 46 x 33cm
Connectors: Aluminium
Weight:
Frame Weight: 51kg
Poly Roof Weight: 15kg
Fabric:
500D PVC Coated Polyester
600D PU Coated Polyester
580GSM 100% Belgian PVC
Warranty:
Frame: 10 Year
Fabric: Polyester Plain & Printed 1 Year
PVC Plain 5 Years, Printed 2 Years & Clear PVC 2 Years
Resources:
Specification Sheet
Instructions
Artwork PDF
Certification:
Engineer Certification
Fire Retardant Polyester
Water Penetration Polyester
Production & Delivery
Plain Marquees: Dispatched in one business day
Printed Marquees: Approximately two weeks
Production & delivery times are estimates and start after artwork approval and full payment. If you have a tight due date give our team a call regarding expediting your order.
Returns
If you wish to return your product due to a change of mind, the product must be in new, unused condition. All freight charges incurred by Extreme Marquees are non-refundable.
4.0 x 8.0
Frame Specifications:
Strength: Super Heavy Duty
Frame: Aluminium
Height: 3.73m
Clearance: 2.1m
Main Profile Size: 57mm
Main Profile: Hexagonal
Truss Bars: 36 x 18mm
Box Size: 208 x 57 x 33cm
Connectors: Aluminium
Weight:
Frame Weight: 69kg
Poly Roof Weight: 19kg
Fabric:
500D PVC Coated Polyester
600D PU Coated Polyester
580GSM 100% Belgian PVC
Warranty:
Frame: 10 Year
Fabric: Polyester Plain & Printed 1 Year
PVC Plain 5 Years, Printed 2 Years & Clear PVC 2 Years
Resources:
Specification Sheet
Instructions
Artwork PDF
Certification:
Engineer Certification
Fire Retardant Polyester
Water Penetration Polyester
Production & Delivery
Plain Marquees: Dispatched in one business day
Printed Marquees: Approximately two weeks
Production & delivery times are estimates and start after artwork approval and full payment. If you have a tight due date give our team a call regarding expediting your order.
Returns
If you wish to return your product due to a change of mind, the product must be in new, unused condition. All freight charges incurred by Extreme Marquees are non-refundable.
5.0 x 5.0
Frame Specifications:
Strength: Super Heavy Duty
Frame: Aluminium
Height: 4.13m
Clearance: 2.13m
Main Profile Size: 40mm
Main Profile: Square
Truss Bars: 32 x 16mm
Connectors: Aluminium
Box Size: 175x56x56cm
Weight:
Frame Weight: 70kg
Poly Roof Weight: 16kg
Fabric:
500D PVC Coated Polyester
600D PU Coated Polyester
580GSM Belgian PVC
Warranty:
Frame: 10 Year
Fabric: Polyester Plain & Printed 1 Year
PVC Plain 5 Years, Printed 2 Years & Clear PVC 2 Years
Resources:
Specification Sheet
Instructions
Artwork PDF
Certification:
Engineer Certification
Fire Retardant Polyester
Water Penetration Polyester
Production & Delivery
Plain Marquees: Dispatched in one business day
Printed Marquees: Approximately two weeks
Production & delivery times are estimates and start after artwork approval and full payment. If you have a tight due date give our team a call regarding expediting your order.
Returns
If you wish to return your product due to a change of mind, the product must be in new, unused condition. All freight charges incurred by Extreme Marquees are non-refundable.
6.0 x 6.0
Frame Specifications:
Strength: Super Heavy Duty
Height: 3.84m
Clearance: 2m
Main Profile Size: 57mm
Main Profile: Hexagonal
Truss Bars: 36 x 18mm
Connectors: Aluminium
Box Size: 175x56x56cm
Weight:
Frame Weight: 110kg
Poly Roof Weight: 20kg
Fabric:
500D PVC Coated Polyester
600D PU Coated Polyester
580GSM 100% Belgian PVC
Warranty:
Frame: 10 Year
Fabric: Polyester Plain & Printed 1 Year
PVC Plain 5 Years, Printed 2 Years & Clear PVC 2 Years
Resources:
Specification Sheet
Instructions
Artwork PDF
Certification:
Engineer Certification
Fire Retardant Polyester
Water Penetration Polyester
Production & Delivery
Plain Marquees: Dispatched in one business day
Printed Marquees: Approximately two weeks
Production & delivery times are estimates and start after artwork approval and full payment. If you have a tight due date give our team a call regarding expediting your order.
Returns
If you wish to return your product due to a change of mind, the product must be in new, unused condition. All freight charges incurred by Extreme Marquees are non-refundable.
ACCESSORIES
WATER WEIGHT
10kg water weights (stackable) have been specially designed and manufactured to secure all folding marquees on hard surfaces where pins & tie down straps cannot be used.
