3.5m x 3.5m
SQUARE
4m dia.
OCTAGONAL
CANTILEVER UMBRELLAS
Home » UMBRELLA RANGE » CANTILEVER UMBRELLAS

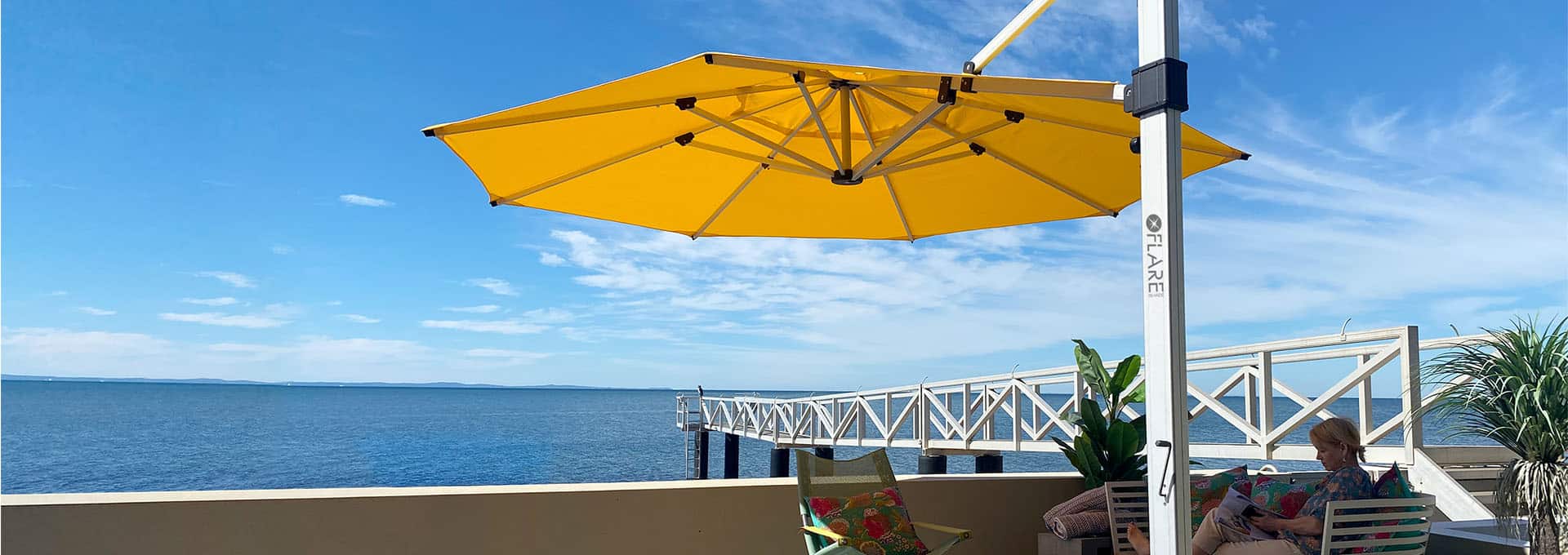

Cantilever umbrellas are a perfect shade solution that allows you to “move your shade”, due to a unique function that normal umbrellas lack. The Flare Shade cantilever umbrella has an advanced design which features a side placed support frame which counterbalances the canopy. The canopy is able to rotate fully through a 360-degree cycle as a result of the side mounted pole which is fixed into a bearing base plate. In addition to this, the technology featured in the cantilever allows the canopy to be tilted at a range of angles, adjusting the shade to accommodate any requirement. For example, have the canopy over the barbecue while cooking, then swing it over to cover your guest whilst seated.
Built to last, the Flare Shade cantilever umbrella has been engineered for strength and long-term durability. Crafted from Flare Shades own branded acrylic fabric, not only is the umbrella manufactured for ease of use, but also aesthetic appeal.
85mm x 120mm Profile
Easy Lift Crank
Marble Base
360 Rotation
Acrylic Fabric
FROM
$5,035
FREE DELIVERY
4m Octagonal Cantilever Umbrella
Specifications:
Frame: Aluminium
Height Opened: 2.83m
Height Closed: 2.83m
Clearance Opened: 2.20m
Clearance Closed: 80cm
Main Pole: 8.5x12cm
Support Bar: 5.5x3.5cm
Rib Size: 2x3cm
Roof Diameter Open: 4m
Roof Closed: 56x30cm
Packing Box: 25x56x296cm
Fabric:
Flare Shade Acrylic
Warranty:
Flare Shade Acrylic: 5 Years Fade Resistant
Aluminum Frame: 12 Months
Printing
Full colour digital printing
Accessories:
Steel Base with Dynabolts – 260x260x12mm
Steel Square Frame Holds 16 x Marble Weight Plates (16kg ea) Total weight 280kgs
Certification:
Engineer Certification 4m
Weight:
Frame Weight: 59kg
Roof Weight: 4kg
FROM
$5,055
FREE DELIVERY
3.5mx3.5m Square Cantilever Umbrella
Specifications:
Frame: Aluminium
Height Opened: 2.83m
Height Closed: 2.83m
Clearance Opened: 2.20m
Clearance Closed: 80cm
Main Pole: 8.5x12cm
Support Bar: 5.5×3.5cm
Rib Size: 2x3cm
Size: 3.5m x 3.5m Square
Roof Open: 3.5×3.5m
Roof Closed: 56x30cm
Packing Box: 25x56x296cm
Frame Weight: 55kg
Roof Weight: 4kg
Fabric:
Flare Shade Acrylic
Warranty:
Flare Shade Acrylic: 5 Years Fade Resistant
Aluminum Frame: 12 Months
Printing
Full colour digital printing
Accessories:
Steel Base with Dynabolts – 260x260x12mm
Steel Square Frame Holds 16 x Marble Weight Plates (16kg ea) Total weight 280kgs
Certification:
Engineer Certification 3.5×3.5m
FROM
$5,420
FREE DELIVERY
4mx4m Square Cantilever Umbrella
Specifications:
Frame: Aluminium
Height Opened: 2.83m
Height Closed: 2.83m
Clearance Opened: 2.20m
Clearance Closed: 80cm
Main Pole: 8.5x12cm
Support Bar: 5.5×3.5cm
Rib Size: 2x3cm
Size: 4m x 4m Square
Roof Open: 4m x 4m
Roof Closed: 56x30cm
Packing Box: 25x56x296cm
Frame Weight: 59kg
Roof Weight: 4kg
Fabric:
Flare Shade Acrylic
Warranty:
Flare Shade Acrylic: 5 Years Fade Resistant
Aluminum Frame: 12 Months
Printing
Full colour digital printing
Accessories:
Steel Base with Dynabolts – 260x260x12mm
Steel Square Frame Holds 16 x Marble Weight Plates (16kg ea) Total weight 280kgs
Certification:
Engineer Certification 4x4m
Extreme Marquees offers both full colour UV printing and screen printing.
UV Printing
UV printing is a form of digital printing that uses ultra-violet lights to dry or cure ink as it is printed. As the printer distributes ink on the surface of the marquee fabric, specially designed UV lights follow close behind, “curing” or “drying” the ink instantly. The benefits of UV printing are that it is very resistant to fading. With UV printing there is also no restrictions to the number of colours or logos on the design. UV printing is done on our heavy duty 900D PU Coated Polyester Fabric.
Screen Printing
Screen Printing is the process whereby ink is forced onto the fabric through a mesh screen. Screen printing is ideal for simple designs that are produced in higher quantities.
Extreme Marquees charges the same price for both UV and Screen Printing. The best printing method for your order can be determined with our production team after you have placed your order and submitted your design.
FROM
$5,035
FREE DELIVERY
Specifications:
Size: 4m Octagonal Umbrella
Frame: Aluminium
Height Opened: 2.83m
Height Closed: 2.83m
Clearance Opened: 2.20m
Clearance Closed: 80cm
Pole Size: 8.5cm x 12cm
Support Bar: 5.5cm x 3.5cmRib Size: 2cm x 3cm
Roof Diameter Open: 4m
Roof Closed: 56cm x 30cm
Packing Box: 25cm x 56cm x 296cm
Weight
Frame Weight: 59kg Roof Weight: 4kg
Extreme Marquees offers both full colour UV printing and screen printing.
UV Printing
UV printing is a form of digital printing that uses ultra-violet lights to dry or cure ink as it is printed. As the printer distributes ink on the surface of the marquee fabric, specially designed UV lights follow close behind, “curing” or “drying” the ink instantly. The benefits of UV printing are that it is very resistant to fading. With UV printing there is also no restrictions to the number of colours or logos on the design. UV printing is done on our heavy duty 900D PU Coated Polyester Fabric.
Screen Printing
Screen Printing is the process whereby ink is forced onto the fabric through a mesh screen. Screen printing is ideal for simple designs that are produced in higher quantities.
Extreme Marquees charges the same price for both UV and Screen Printing. The best printing method for your order can be determined with our production team after you have placed your order and submitted your design.
Warranty:
Flare Shade Acrylic
Aluminum Frame: 12 Months
Resources:
Specifications
Acrylic Fabric Colours
4m Template
Instructions
Certification:
Engineer Certification 4m
Production & Delivery
Plain Marquees: Dispatched in one business day
Printed Marquees: Approximately two weeks
Production & delivery times are estimates and start after artwork approval and full payment. If you have a tight due date give our team a call regarding expediting your order.
Returns
If you wish to return your product due to a change of mind, the product must be in new, unused condition. All freight charges incurred by Extreme Marquees are non-refundable.
FROM
$5,055
FREE DELIVERY
Specifications:
Frame: Aluminium
Height Opened: 2.83m
Height Closed: 2.83m
Clearance Opened: 2.20m
Clearance Closed: 80cm
Main Pole: 8.5x12cm
Support Bar: 5.5×3.5cm
Rib Size: 2x3cm
3.5m x 3.5m Square
Roof Open: 3.5×3.5m
Roof Closed: 56x30cm
Packing Box: 25x56x296cm
Frame Weight: 55kg
Roof Weight: 4kg
Extreme Marquees offers both full colour UV printing and screen printing.
UV Printing
UV printing is a form of digital printing that uses ultra-violet lights to dry or cure ink as it is printed. As the printer distributes ink on the surface of the marquee fabric, specially designed UV lights follow close behind, “curing” or “drying” the ink instantly. The benefits of UV printing are that it is very resistant to fading. With UV printing there is also no restrictions to the number of colours or logos on the design. UV printing is done on our heavy duty 900D PU Coated Polyester Fabric.
Screen Printing
Screen Printing is the process whereby ink is forced onto the fabric through a mesh screen. Screen printing is ideal for simple designs that are produced in higher quantities.
Extreme Marquees charges the same price for both UV and Screen Printing. The best printing method for your order can be determined with our production team after you have placed your order and submitted your design.
Warranty:
Flare Shade Acrylic
Aluminum Frame: 12 Months
Resources:
Specifications
Acrylic Fabric Colours
3.5m Template
Instructions
Certification:
Engineer Certification 3.5×3.5m
Production & Delivery
Plain Marquees: Dispatched in one business day
Printed Marquees: Approximately two weeks
Production & delivery times are estimates and start after artwork approval and full payment. If you have a tight due date give our team a call regarding expediting your order.
Returns
If you wish to return your product due to a change of mind, the product must be in new, unused condition. All freight charges incurred by Extreme Marquees are non-refundable.
FROM
$5,420
FREE DELIVERY
Specifications:
Frame: Aluminium
Height Opened: 2.83m
Height Closed: 2.83m
Clearance Opened: 2.20m
Clearance Closed: 80cm
Main Pole: 8.5x12cm
Support Bar: 5.5×3.5cm
Rib Size: 2x3cm
4m x 4m Square
Roof Open: 4m x 4m
Roof Closed: 56x30cm
Packing Box: 25x56x296cm
Frame Weight: 59kg
Roof Weight: 4kg
Extreme Marquees offers both full colour UV printing and screen printing.
UV Printing
UV printing is a form of digital printing that uses ultra-violet lights to dry or cure ink as it is printed. As the printer distributes ink on the surface of the marquee fabric, specially designed UV lights follow close behind, “curing” or “drying” the ink instantly. The benefits of UV printing are that it is very resistant to fading. With UV printing there is also no restrictions to the number of colours or logos on the design. UV printing is done on our heavy duty 900D PU Coated Polyester Fabric.
Screen Printing
Screen Printing is the process whereby ink is forced onto the fabric through a mesh screen. Screen printing is ideal for simple designs that are produced in higher quantities.
Extreme Marquees charges the same price for both UV and Screen Printing. The best printing method for your order can be determined with our production team after you have placed your order and submitted your design.
Warranty:
Flare Shade Acrylic
Aluminum Frame: 12 Months
Resources:
Specifications
Acrylic Fabric Colours
4m Template
Instructions
Certification:
Engineer Certification 4x4m
Production & Delivery
Plain Marquees: Dispatched in one business day
Printed Marquees: Approximately two weeks
Production & delivery times are estimates and start after artwork approval and full payment. If you have a tight due date give our team a call regarding expediting your order.
Returns
If you wish to return your product due to a change of mind, the product must be in new, unused condition. All freight charges incurred by Extreme Marquees are non-refundable.
REQUEST A QUOTE
Chat with us Now!
Have you got a question, need some help ordering or just have a general quote enquiry?
The Flare Shade 3.5×3.5 and 4×4 metre cantilever umbrellas are the most versatile shade solutions on the market. These cantilever umbrellas have been specifically designed so you can move your shade to where it’s needed. The canopy can rotate through a full 360 degrees, allowing the structure to be positioned exactly how and where it’s needed. When the sun moves, so can your cantilever umbrella. To fine tune the position of your shade, the canopy can be tilted on its other axis. As the sun goes down the canopy can be tilted to provide block-out from another direction. The 3.5×3.5 and 4×4 cantilever umbrellas are manufactured from polished marine grade aluminium and the canopies are crafted from Flare Shades own Acrylic high performance, fade resistant textile. Custom branding is also available. Our graphics team can assist you with artwork templates through to logo design if needed.
The Flare Shade 4 metre diameter octagonal cantilever shade solution is as stunning as it is stylish. High-quality, high-performance textiles will stay looking bright and colourful for years. The 4 metre Flare Shade cantilever umbrella can be rotated, and its canopy tilted to provide shade exactly where needed. The frame is made from robust, high grade marine rated aluminium. It is perfect for your home poolside area or restaurants and cafes in need of flexible shade options. Custom printing on all canopy panels is available.
