PAGODA PAVILION EVENT MARQUEES NZ

If you want an event tent that requires a standard above that of a pop-up gazebo, our pavilion tent range is ideal. Offering a sturdy commercial grade tent without the need for excess truss bars and connectors, the pavilion range stands out from the crowd. Available in four sizes from 3x3m up to 6x6m, these pagoda style tents cover a large area with a peaked roof that stands tall and proud above standard folding tents. Pavilion tents come standard with a PVC roof that is available in 10 standard colours. PVC walls can also be added to the tent to enclose the structure. Roofs and walls can be completely custom printed with your logo, graphics or photos.

The 3×3 Pavilion marquee is easy to set up and perfect for markets or festivals. The 3×3 foot-print allows it to easily fit into standard size sites. The roof and side walls can be fully custom printed to make it the ideal branding solution. Engineered certified for use at public events.

Size: 3m x 3m From $2,395 NZD

Frame Specifications
Height: 4m
Clearance: 2.25m
Roof Tension: Turn buckle system
Main Profile: Dia. 63mm x 2.5mm Thickness
Feet: Aluminium
Connectors: Steel
Framework Material:
Aluminium 6063 T5
Cover Material: 580GSM PVC

Packing Details:
Frame: 290x34x16cm 48kg
PVC Roof: 49x 46x 19cm 12kg

The 4×4 Pavilion will stand out at any event. The peak is an impressive 4.5 metres high with side walls offering a clearance of 2.25 metres. Easy to set up by just two people and ideal for agricultural shows.

Size: 4m x 4m From $2,995 NZD

Frame Specifications
Height: 4.5m
Clearance: 2.25m
Roof Tension: Turn buckle system
Main Profile: Dia. 63mm x 2.5mm Thickness
Feet: Aluminium
Connectors: Steel
Framework Material:
Aluminium 6063 T5
Cover Material: 580GSM PVC

Packing Details:
Frame: 240x35x22cm 60kg
PVC Roof: 61x58x26 19kg

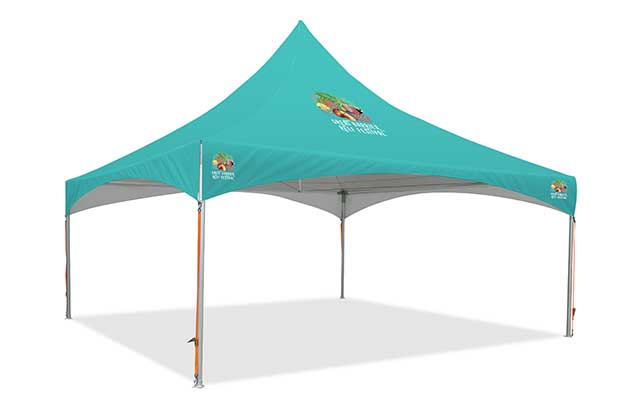

The 5×5 is one of our larger Pavilion marquees and offers a clear span of 5 metres. The high peak roof allows for a nice, cool shaded area under roof. Perfect for exhibitors who attend events and need a reliable, high quality marquee.

Size: 5m x 5m From $3,495 NZD

Frame Specifications
Height: 4.6m
Clearance: 2.25m
Roof Tension: Turn buckle system
Main Profile: Dia. 63mm x 2.5mm Thickness
Feet: Aluminium
Connectors: Steel
Framework Material:
Aluminium 6063 T5
Cover Material: 580GSM PVC

Packing Details:
Frame: 295x35x25cm 75kg
PVC Roof: 60x40x40cm 30kg

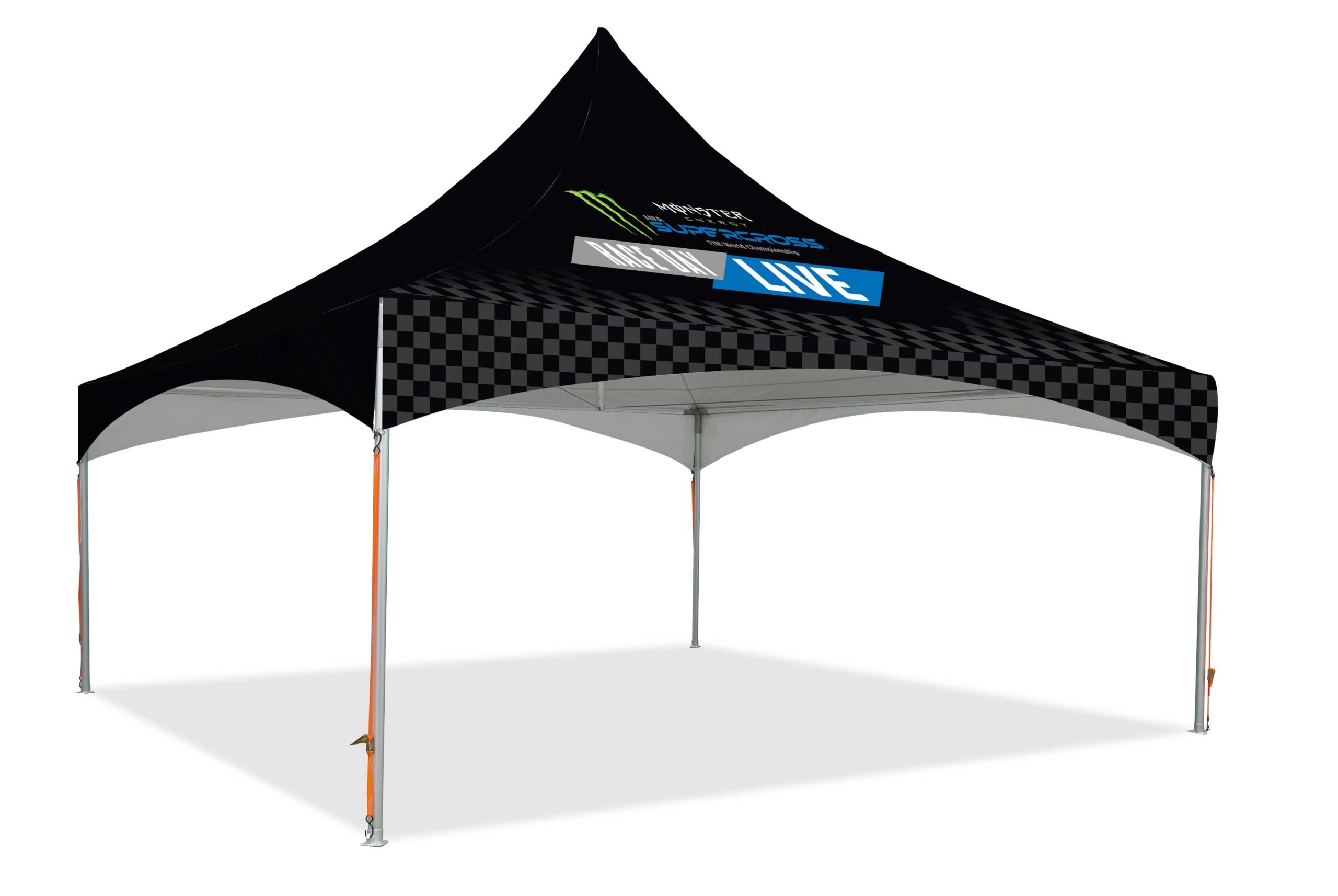

The 6×6 is our largest Pavilion marquee. With a 6 metre clear span, it is perfect for corporate companies that want to impress. The roof and side walls can be fully custom printed from top to bottom. Should a larger area be required, gutters can join two or more marquees together. Great for reception venues that need additional space or for use at trackside corporate functions.

Size: 6m x 6m From $,4,095 NZD

Frame Specifications
Height: 5.6m
Clearance: 2.25m
Roof Tension: Turn buckle system
Main Profile: Dia. 63mm x 2.5mm Thickness
Feet: Aluminium
Connectors: Steel
Framework Material:
Aluminium 6063 T5
Cover Material: 580GSM PVC

Packing Details:
Frame: 295x35x25 81Kg
PVC Roof: 64x59x34cm 35Kg

Roof Fabrics:
580GSM PVC

PVC Standard Colours:

The 3×6 Pavilion is our only rectangular shaped marquee in this range. This marquee has proved to be a great success and provides a cost effective alternative to hiring.

Size: 3m x 6m From $3,495 NZD

Frame Specifications
Height: 5.6m
Clearance: 2.25m
Roof Tension: Turn buckle system
Main Profile: Dia. 63mm x2.5mm Thickness
Feet: Aluminium
Connectors: Steel
Framework Material:
Aluminium 6063 T5
Cover Material: 580GSM PVC

Packing Details:
Frame: 75kg

Roof Fabrics:
580GSM PVC

PVC Standard Colours:

Printing:
6m x 3m Artwork Template

Download PDF
6m x 3m Engineer Certification
Pavilion Specification Sheet

Spec Sheets & Certification

Why choose Extreme Marquees NZ Pavilion Series?

The extensive and affordable range is only available at NZ’s leading marquee supplier Extreme Marquees NZ.
