Dome Shaped Gazebos, Shelter & Marquees
DOME SHAPED MARQUEES, SHELTERS & GAZEBOS
Size: 4m
Frame Specifications
Size: 4m
Ceiling Height: 2.4m
Floor Space: 12.5 sq.m
Stand up Capacity: 15
Sit down Capacity: 10
Door Size: 1.2mx1.8m
Frame Material: Steel
Frame Size:
20mm Diameter x 1.5mm thickness
Installation
Time: 4 Hours
Personnel Required: 3
Equipment Scaffold: 2.5m
PVC Standard Colours
580GSM
Size / Frame / Roof PVC / Bearing Bar Weight;
4m / 118Kg / 41Kg / 11Kg
TOTAL 170Kg
Printing
Full Roof Digital Printing
Please enquire
Download PDF
Dome Specification Sheet
Engineer Certification
Video
Click to view
Size: 5m
Frame Specifications
Size: 5m
Ceiling Height: 3m
Floor Space: 17.8 sq.m
Stand up Capacity: 24
Sit down Capacity: 16
Door Size: 1.2×1.8m
Frame Material: Steel
Frame Size:
20mm Diameter x 1.5mm thickness
Installation
Time: 4 Hours
Personnel Required: 3
Equipment Scaffold: 2.5m
PVC Standard Colours
580GSM
Size / Frame / Roof PVC / Bearing Bar Weight;
5m / 141Kg / 64Kg / 14Kg
TOTAL 218Kg
Printing
Full Roof Digital Printing
Please enquire
Download PDF
Dome Specification Sheet
Engineer Certification
Video
Click to view
Size: 6m
Frame Specifications
Size: 6m
Ceiling Height: 3m
Floor Space: 28 sq.m
Stand up Capacity: 34
Sit down Capacity: 23
Door Size: 1.2×1.8m
Frame Material: Steel
Frame Size:
20mm Diameter x 1.5mm thickness
Installation
Time: 4 Hours
Personnel Required: 4
Equipment Scaffold: 2.5m
PVC Standard Colours
580GSM
Size / Frame / Roof PVC / Bearing Bar Weight;
6m / 186Kg / 77Kg / 17Kg
TOTAL 279Kg
Printing
Full Roof Digital Printing
Please enquire
Download PDF
Dome Specification Sheet
6m Instruction Manual
Engineer Certification
Video
Click to view
Size: 7m
Frame Specifications
Size: 7m
Ceiling Height: 3.5m
Floor Space: 38 sq.m
Stand up Capacity: 46
Sit down Capacity: 31
Door Size: 1.5×2.1m
Frame Material: Steel
Frame Size:
20mm Diameter x 1.5mm thickness
Installation
Time: 5 Hours
Personnel Required: 4
Equipment Scaffold: 2.5m
PVC Standard Colours
580GSM
Size / Frame / Roof PVC / Bearing Bar Weight;
7m / 220Kg / 105Kg / 19Kg
TOTAL 344Kg
Printing
Full Roof Digital Printing
Please enquire
Download PDF
Dome Specification Sheet
Engineer Certification
Video
Click to view
Size: 8m
Frame Specifications
Size: 8m
Ceiling Height: 4m
Floor Space: 50 sq.m
Stand up Capacity: 60
Sit down Capacity: 40
Door Size: 1.5×2.1m
Frame Material: Steel
Frame Size:
25mm Diameter x 1.5mm thickness
Installation
Time: 5 Hours
Personnel Required: 5
Equipment Scaffold: 2.5m
PVC Standard Colours
580GSM
Size / Frame / Roof PVC / Bearing Bar Weight;
8m / 321Kg / 137Kg / 22Kg
TOTAL 479Kg
Printing
8m Dome Artwork Template
Download PDF
Dome Specification Sheet
Engineer Certification
8m Instruction Manual
Video
Click to view
Size: 9m
Frame Specifications
Size: 9m
Ceiling Height: 4m
Floor Space: 63 sq.m
Stand up Capacity: 76
Sit down Capacity: 51
Door Size: 1.5mx2.1m
Frame Material: Steel
Frame Size:
25mm Diameter x 1.5mm thickness
Installation
Time: 5 Hours
Personnel Required: 5
Equipment Scaffold: 3m
PVC Standard Colours
580GSM
Size / Frame / Roof PVC / Bearing Bar Weight;
9m / 397Kg / 155Kg / 25Kg
TOTAL 576Kg
Printing
Full Roof Digital Printing
Download PDF
Dome Specification Sheet
Video
Click to view

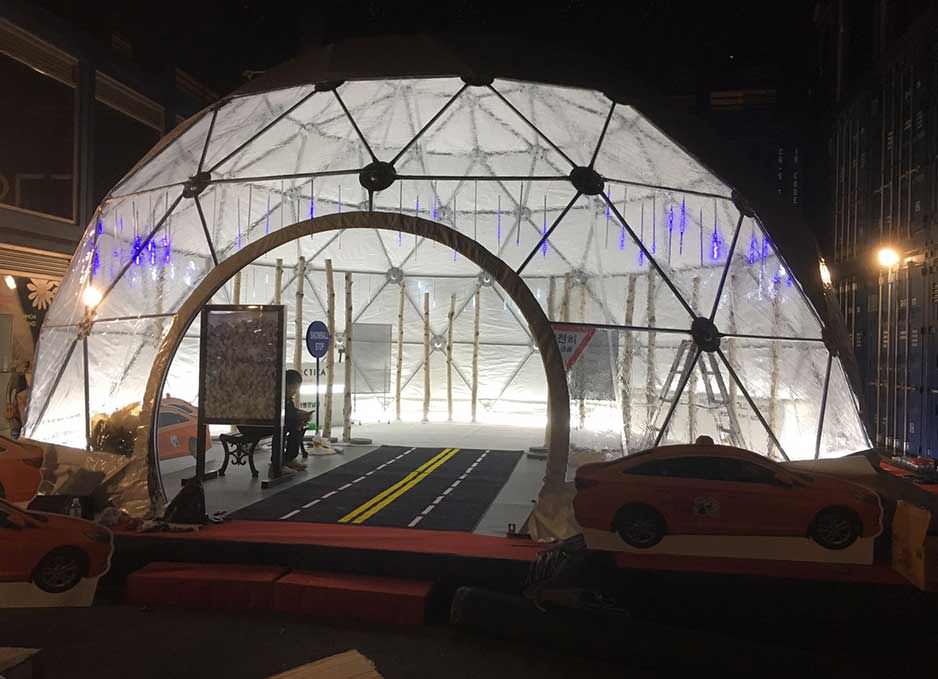

Size: 10m
Frame Specifications
Size: 10m
Ceiling Height: 4.5m
Floor Space: 78 sq.m
Stand up Capacity: 94
Sit down Capacity: 63
Door Size: 2.4mx2.4m
Frame Material: Steel
Frame Size:
25mm Diameter x 1.5mm thickness
Installation
Time: 6 Hours
Personnel Required: 6
Equipment Scaffold: 3.5m
PVC Standard Colours
580GSM
Size / Frame / Roof PVC / Bearing Bar Weight;
10m / 498Kg / 191Kg / 27Kg
TOTAL 716Kg
Printing
Full Roof Digital Printing
Please enquire
Download PDF
Dome Specification Sheet
10m Instruction Manual
Video
Click to view
Size: 11m
Frame Specifications
Size: 11m
Ceiling Height: 4.9m
Floor Space: 95 sq.m
Stand up Capacity: 114
Sit down Capacity: 76
Door Size: 2.4mx2.4m
Frame Material: Steel
Frame Size:
25mm Diameter x 1.5mm thickness
Installation
Time: 7 Hours
Personnel Required: 6
Equipment Scaffold
Crane: 20 Ton Crane
PVC Standard Colours
580GSM
Size / Frame / Roof PVC / Bearing Bar Weight;
11m / 534Kg / 231Kg / 30Kg
TOTAL 795Kg
Printing
Full Roof Digital Printing
Download PDF
Engineer Certification
Dome Specification Sheet
Video
Click to view
Size: 12m
Frame Specifications
Size: 12m
Ceiling Height: 6m
Floor Space: 113 sq.m
Stand up Capacity: 136
Sit down Capacity: 90
Door Size: 2.4mx2.4m
Frame Material: Steel
Frame Size:
25mm Diameter x 1.5mm thickness
Installation
Time: 8 Hours
Personnel Required: 6
Equipment Scaffold
Crane: 20 Ton Crane
PVC Standard Colours
580GSM
Size / Frame / Roof PVC / Bearing Bar Weight;
12m / 736Kg / 308Kg / 33Kg
TOTAL 1076Kg
Printing
Full Roof Digital Printing
Download PDF
Engineer Certification
Dome Specification Sheet
Video
Click to view
Size: 13m
Frame Specifications
Size: 13m
Ceiling Height: 5.8m
Floor Space: 132 sq.m
Stand up Capacity: 156
Sit down Capacity: 106
Door Size: 2.4mx2.4m
Frame Material: Steel
Frame Size:
32mm Diameter x 2mm thickness
Installation
Time: 8 Hours
Personnel Required: 6
Equipment Scaffold
Crane: 20 Ton Crane
PVC Standard Colours
580GSM
Size / Frame / Roof PVC / Bearing Bar Weight;
13m / 940Kg / 322Kg / 35Kg
TOTAL 1297Kg
Printing
Full Roof Digital Printing
Download PDF
Dome Specification Sheet
Video
Click to view
Size: 14m
Frame Specifications
Size: 14m
Ceiling Height: 7m
Floor Space: 154 sq.m
Stand up Capacity: 185
Sit down Capacity: 123
Door Size: 2.4mx2.4m
Frame Material: Steel
Frame Size:
32mm Diameter x 2mm thickness
Installation
Time: 8 Hours
Personnel Required: 6
Equipment Scaffold
Crane: 20 Ton Crane
PVC Standard Colours
580GSM
Size / Frame / Roof PVC / Bearing Bar Weight;
14m / 1308Kg / 419Kg / 38Kg
TOTAL 1765Kg
Printing
Full Roof Digital Printing
Please enquire
Download PDF
Dome Specification Sheet
14m Instruction Manual
Video
Click to view
Size: 15m
Frame Specifications
Size: 15m
Ceiling Height: 6.19m
Floor Space: 176 sq.m
Stand up Capacity: 212
Sit down Capacity: 141
Door Size: 2.4mx2.4m
Frame Material: Steel
Frame Size:
32mm Diameter x 2mm thickness
Installation
Time: 8 Hours
Personnel Required: 6
Equipment Scaffold
Crane: 20 Ton Crane
PVC Standard Colours
580GSM
Size / Frame / Roof PVC / Bearing Bar Weight;
15m / 1201Kg / 397Kg / 40Kg
TOTAL 1637Kg
Printing
Full Roof Digital Printing
Download PDF
Dome Specification Sheet
Video
Click to view
Size: 16m
Frame Specifications
Size: 16m
Ceiling Height: 6.59m
Floor Space: 200 sq.m
Stand up Capacity: 241
Sit down Capacity: 161
Door Size: 2.4mx2.4m
Frame Material: Steel
Frame Size:
32mm Diameter x 2mm thickness
Installation
Time: 8 Hours
Personnel Required:
8 (Frame) 12 (Fabric)
Equipment Scaffold
Crane: 20 Ton Crane
PVC Standard Colours
580GSM
Size / Frame / Roof PVC / Bearing Bar Weight;
16m / 1269Kg / 451Kg / 43Kg
TOTAL 1763Kg
Printing
Full Roof Digital Printing
Download PDF
Dome Specification Sheet
Video
Click to view
Size: 17m
Frame Specifications
Size: 17m
Ceiling Height: 6.62m
Floor Space: 243 sq.m
Stand up Capacity: 272
Sit down Capacity: 182
Door Size: 2.4mx2.4m
Frame Material: Steel
Frame Size:
32mm Diameter x 2mm thickness
Installation
Time: 8 Hours
Personnel Required:
8 (Frame) 12 (Fabric)
Equipment Scaffold
Crane: 20 Ton Crane
PVC Standard Colours
580GSM
Size / Frame / Roof PVC / Bearing Bar Weight;
17m / 1474Kg / 481Kg / 45Kg
TOTAL 2000Kg
Printing
Full Roof Digital Printing
Download PDF
Dome Specification Sheet
Video
Click to view
Size: 18m
Frame Specifications
Size: 18m
Ceiling Height: 7.42m
Floor Space: 254 sq.m
Stand up Capacity: 305
Sit down Capacity: 204
Door Size: 2.4mx2.4m
Frame Material: Steel
Frame Size:
38mm Diameter x 2mm thickness
Installation
Time: 8 Hours
Personnel Required:
8 (Frame) 12 (Fabric)
Equipment Scaffold
Crane: 20 Ton Crane
PVC Standard Colours
580GSM
Size / Frame / Roof PVC / Bearing Bar Weight;
18m / 1653Kg / 571Kg / 48Kg
TOTAL 2272Kg
Printing
Full Roof Digital Printing
Download PDF
Dome Specification Sheet
Video
Click to view
Size: 19m
Frame Specifications
Size: 19m
Ceiling Height: 7.84m
Floor Space: 283 sq.m
Stand up Capacity: 340
Sit down Capacity: 227
Door Size: 2.4mx2.4m
Frame Material: Steel
Frame Size:
38mm Diameter x 2mm thickness
Installation
Time: 8 Hours
Personnel Required:
8 (Frame) 12 (Fabric)
Equipment Scaffold
Crane: 20 Ton Crane
PVC Standard Colours
580GSM
Size / Frame / Roof PVC / Bearing Bar Weight;
19m / 1735Kg / 636Kg / 51Kg
TOTAL 2421Kg
Printing
Full Roof Digital Printing
Download PDF
Dome Specification Sheet
Video
Click to view
Size: 20m
Frame Specifications
Size: 20m
Ceiling Height: 8.27m
Floor Space: 314 sq.m
Stand up Capacity: 377
Sit down Capacity: 251
Door Size: 2.4mx2.4m
Frame Material: Steel
Frame Size:
38mm Diameter x 2mm thickness
Installation
Time: 8 Hours
Personnel Required:
8 (Frame) 12 (Fabric)
Equipment Scaffold
Crane: 20 Ton Crane
PVC Standard Colours
580GSM
Size / Frame / Roof PVC / Bearing Bar Weight;
20m / 1882Kg / 707Kg / 54Kg
TOTAL 2642Kg
Printing
Full Roof Digital Printing
Download PDF
Dome Specification Sheet
Video
Click to view
WATCH OUR EXTREME VIDEO
Our Dome tent range has proven to be one of our most robust and unique looking event gazebos ever produced. These dome tents have even been used on Mt Everest, demonstrating the incredible heavy duty and stability provided. Its diametrical tetrahedral design means the structure can withstand adverse weather conditions where standard structures cannot. Extreme Marquees’ Dome Tents, Gazebos, Marquees and shelters can also be custom printed for those wanting to promote their brand or customised with an array of colours and sizes.
‘Putting the extreme into marquees’
We are so certain you won’t find cheaper that we offer a Lowest Price Guarantee, we’ll beat a lower price by 10% on identical competitors marquee products*
Pick up the phone and call us on 0800 424 313 to talk to one of our helpful & friendly staff. If you are in Auckland, Wellington, Christchurch, Hamilton, Dunedin, Queenstown, Rotorua, or Tauranga or anywhere else in New Zealand!
